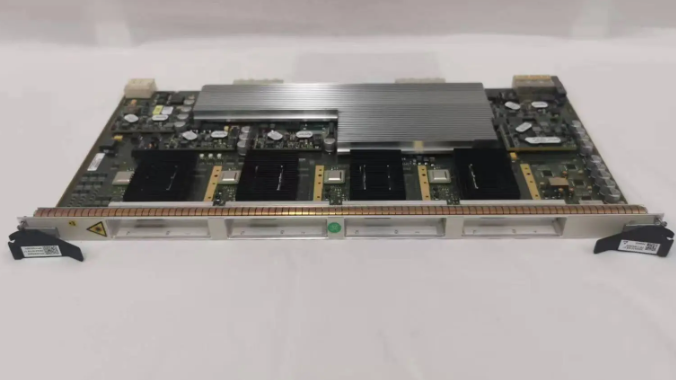

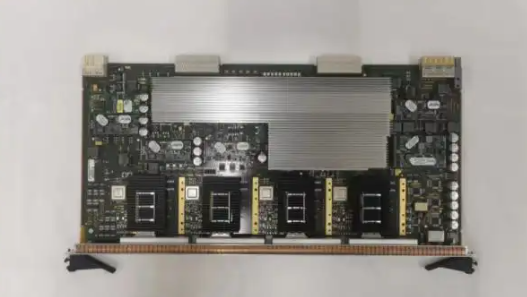

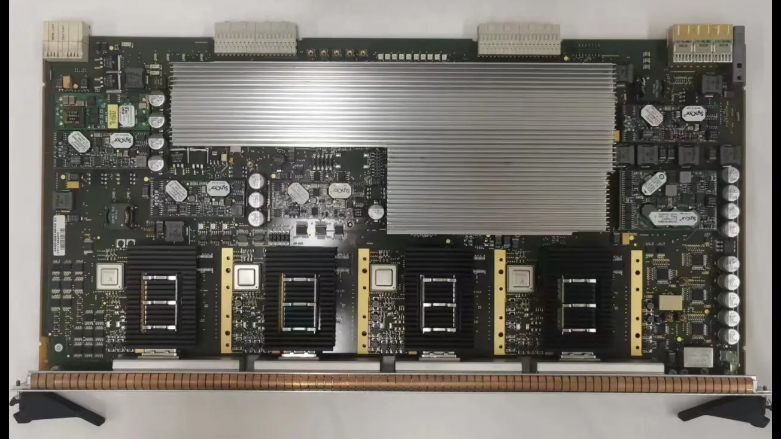

3AG24161AB P4S64X for Alcatel-Lucent 1678MCC

The following is a product description about Alcatel Lucent 3AG24161AB module

1. Product Overview

Alcatel 3AG24161AB is a high-performance module designed for optical transmission networks, belonging to the 1678 Metro Core Connect (MCC) series. This module is designed for Optical Multi Service Node (OMSN), supporting high-speed data transmission and complex network function integration, and is suitable for deployment in subway core networks, metropolitan area networks, and backbone networks.

2. Technical specifications and parameters

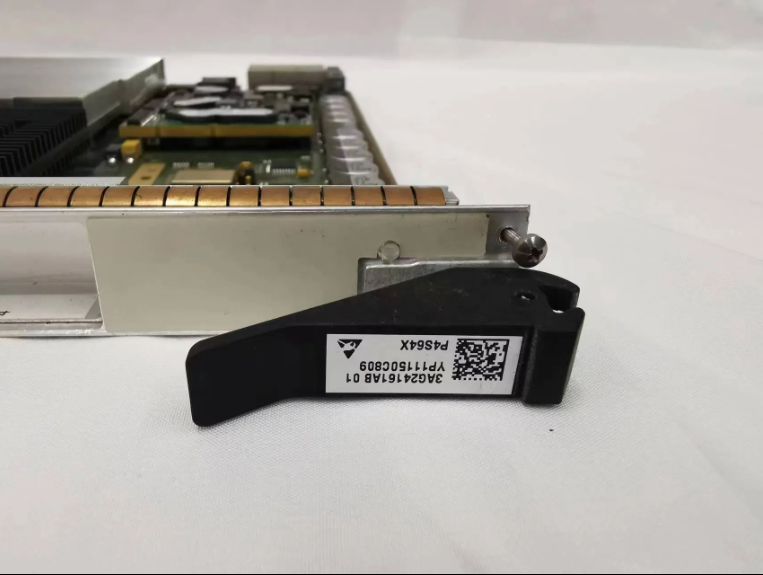

Model identification: P4S64X (marked as P4S64X STM-64/OC-192 interface board in some documents)

Interface type: 4 STM-64 (synchronous transmission module-64) interfaces, supporting OC-192 standard.

Switching capability: Integrated with 20 Gb/s Layer 2 switching fabric, supporting efficient data forwarding.

Function integration:

Combining ADM (add/drop multiplexer), MPLS broadband switching, and cross connection functions.

Support the fusion application of Multi Protocol Label Switching (MPLS) and Optical Transport Network (OTN).

Compatibility: Compatible with Alcatel Lucent and Nokia's series of devices, such as 1626 LM and 1642 EM.

3. Core functions and advantages

High performance transmission: Supports STM-64 (10 Gb/s) rates, meeting high bandwidth demand scenarios such as data center interconnection and 5G backhaul.

Network flexibility: By integrating Service Adapter (ISA) modules, different service types can be flexibly adapted to improve network resource utilization.

Reliability: The module has undergone rigorous testing and meets OEM standards

Energy saving design: using low-power components to optimize energy efficiency, suitable for large-scale network deployment.

4. Application scenarios

Metropolitan area network core layer: used for aggregating and forwarding large capacity business traffic.

Data Center Interconnection (DCI): Supports long-distance, high bandwidth optical transmission requirements.

5G network: As a key component of the backhaul network, it ensures low latency and high reliability.

5. Related accessories and compatible modules

This module can be used in conjunction with the following components:

Power module: such as PSF Power Supply Filter (3AL81502AA).

Fan and monitoring board: such as FAN (3AL81205AA), FLCCONGI monitoring board (3AG24102AB)

If you need further technical details or procurement information, please contact me
