Original New QLE2662 3pcn3 Dual Port 16gb SFP+ Low Profile HBA Card Ethernet Fibre Channel for POWEREDGE THINKSYSTEM Internal

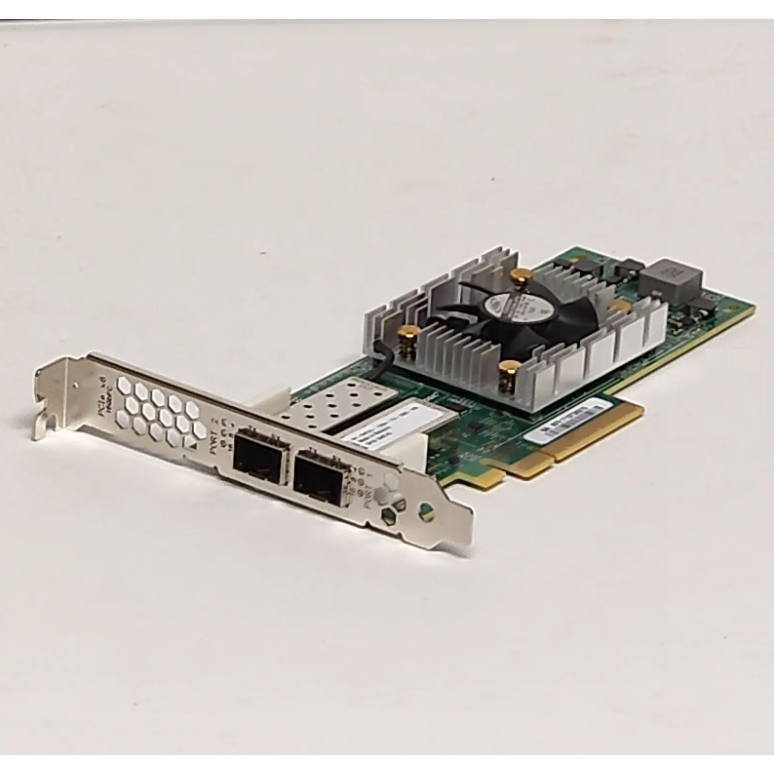

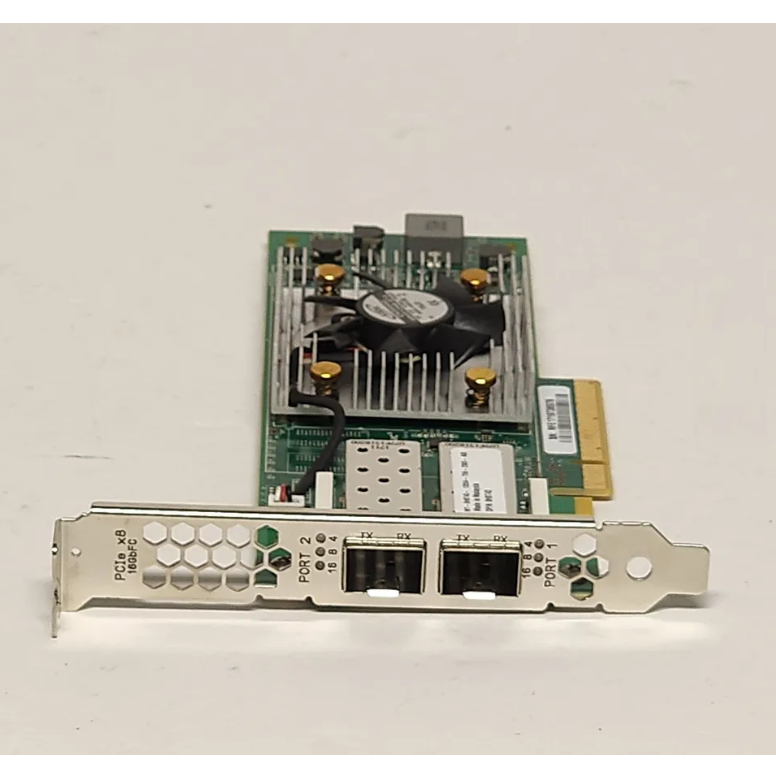

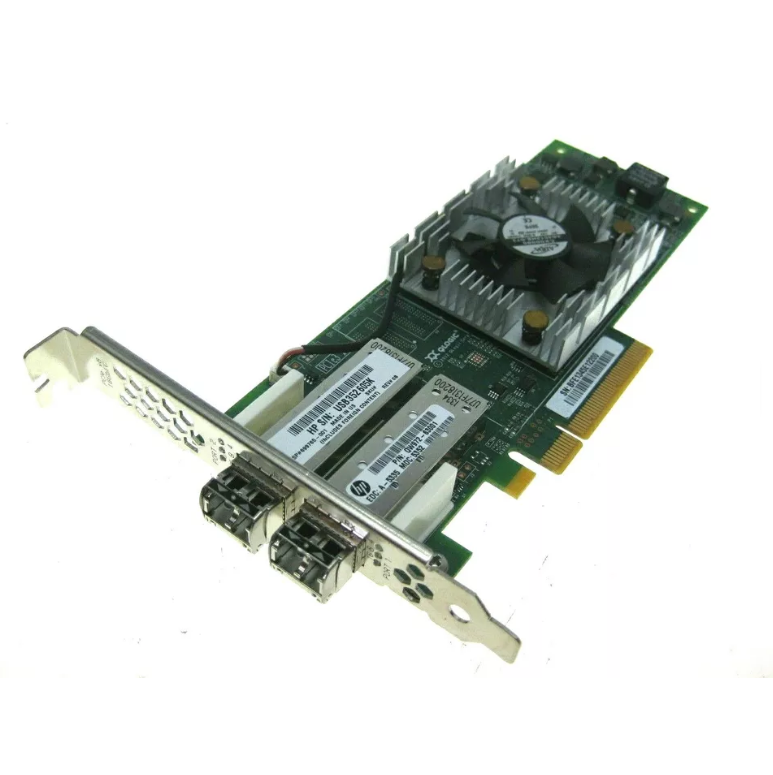

QLogic QLE2662 Dual Port 16Gb Fiber Channel Host Bus Adapter (HBA) Product Introduction

product overview

QLogic QLE2662 is a high-performance dual port 16Gb fiber channel host bus adapter designed for modern enterprise storage area networks (SANs), featuring PCIe 3.0 interfaces. This product provides excellent throughput and ultra-low latency, making it an ideal choice for virtualization, cloud computing, and critical business applications.

Core advantages

Excellent performance

Dual port 16Gb/s fiber channel, each port provides 1600MB/s full duplex bandwidth

Ultra low latency design (<1 microsecond), suitable for high-performance computing environments

Backward compatibility with 8Gb/s and 4Gb/s speeds to protect existing investments

Enterprise level reliability

Support end-to-end data integrity check (CRC)

Multipath I/O (MPIO) and automatic failover functionality

Compliant with the latest industry standard FC-PI-6

Advanced technological features

Support NVMe over FC protocol

Hardware accelerated SCSI and NVMe protocol processing

Dynamic bandwidth allocation and intelligent load balancing

technical specifications

Parameter specifications

Port configuration with 2 independent 16Gb FC ports

Host interface PCIe 3.0 x8

The protocol supports FC-FS-3, FC-LS2, FCP-4, NVMe/FC

Maximum power consumption 12W (full load)

Working temperature: 0 ° C to 55 ° C

Dimensions: Full height/half height baffle available

Application scenarios

Enterprise virtualization platforms (VMware HANA, Microsoft Hyper-V)

High performance databases (Oracle RAC, SAP HANA)

Cloud computing infrastructure storage connection

4K/8K video production and media storage

management function

QLogic SANsurfer Management Suite

Detailed performance monitoring and alarm functions

Support SNMP and REST API integration

Operating system support

Windows Server: 2012/2016/2019

Linux: RHEL 7/8, SLES 12/15

Virtualization: VMware iPadOS 6.5/7.0

Unix: Solaris 11
