Mar Q Logic Vell 2740 Series 32G FC to PCIe 3.0 Fibre Channel Adapters QLE2740-SR-CK (Single Port) QLE2742-SR-CK (Dual Port)

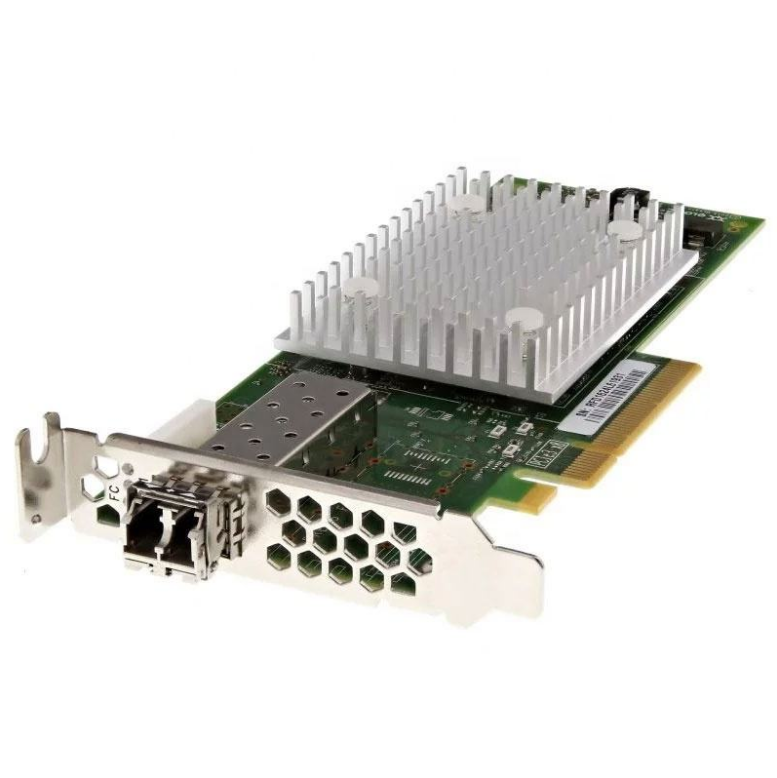

QLogic QLE2740-SR-CK High Performance Fiber Channel HBA

product overview

QLE2740-SR-CK is a high-performance 16Gb Fibre Channel (16GFC) host bus adapter designed specifically for enterprise storage area networks (SANs). It features PCIe 3.0 interfaces and short wave (SR) SFP+optical modules, providing low latency, high reliability storage connectivity for critical business applications, suitable for virtualization, database, and high-performance storage environments.

core features

High speed fiber channel support

Supports 16GFC (compatible with 8GFC/4GFC/2GFC), automatically negotiates speed, seamlessly integrates with existing SAN architecture.

SR SFP+optical module interface (850nm wavelength), multi-mode fiber transmission distance up to 100 meters (OM4 fiber).

Excellent performance and low latency

PCIe 3.0 x8 interface provides up to 8GT/s bandwidth to meet high throughput requirements.

Hardware acceleration function: Supports FCP (Fiber Channel Protocol) offloading to reduce CPU overhead.

Enterprise level reliability and scalability

Support NPIV (N_Port ID Virtualization), where a single port can be virtualized into multiple logical ports to improve virtualization efficiency.

Full duplex architecture, supporting multi-path I/O (MPIO) and failover to ensure business continuity.

Wide compatibility

Compatible with mainstream operating systems:

Windows Server（2012 R2/2016/2019）

Linux（RHEL、SLES、Ubuntu）

VMware ESXi（6.0/6.5/7.0）

Certified storage array compatibility: EMC, NetApp, HPE 3PAR, etc.

technical specifications

Parameter details

Interface type PCIe 3.0 x8 (compatible with x16/x4 slots)

Number of ports: 1 port SFP+(shortwave)

Transmission rate 16GFC (16Gbps), 8GFC, 4GFC, 2GFC adaptive

Fiber optic supports multimode fiber (OM3/OM4), with a maximum transmission distance of 100 meters (16GFC)

The protocol supports FC-PI-5, FCP-4, FC-SP-2, and NPIV

Power consumption ≤ 10W (typical load)

Working temperature: 0 ° C to 55 ° C

Certification FCC, CE, RoHS

Application scenarios

Enterprise level SAN storage: Connect to fiber channel storage arrays (such as EMC PowerMax, NetApp FAS).

Virtualization Platform: Provides high bandwidth storage access for VMware vSphere/Hyper-V.

Key business databases: low latency demand scenarios such as Oracle RAC and SQL Server.
