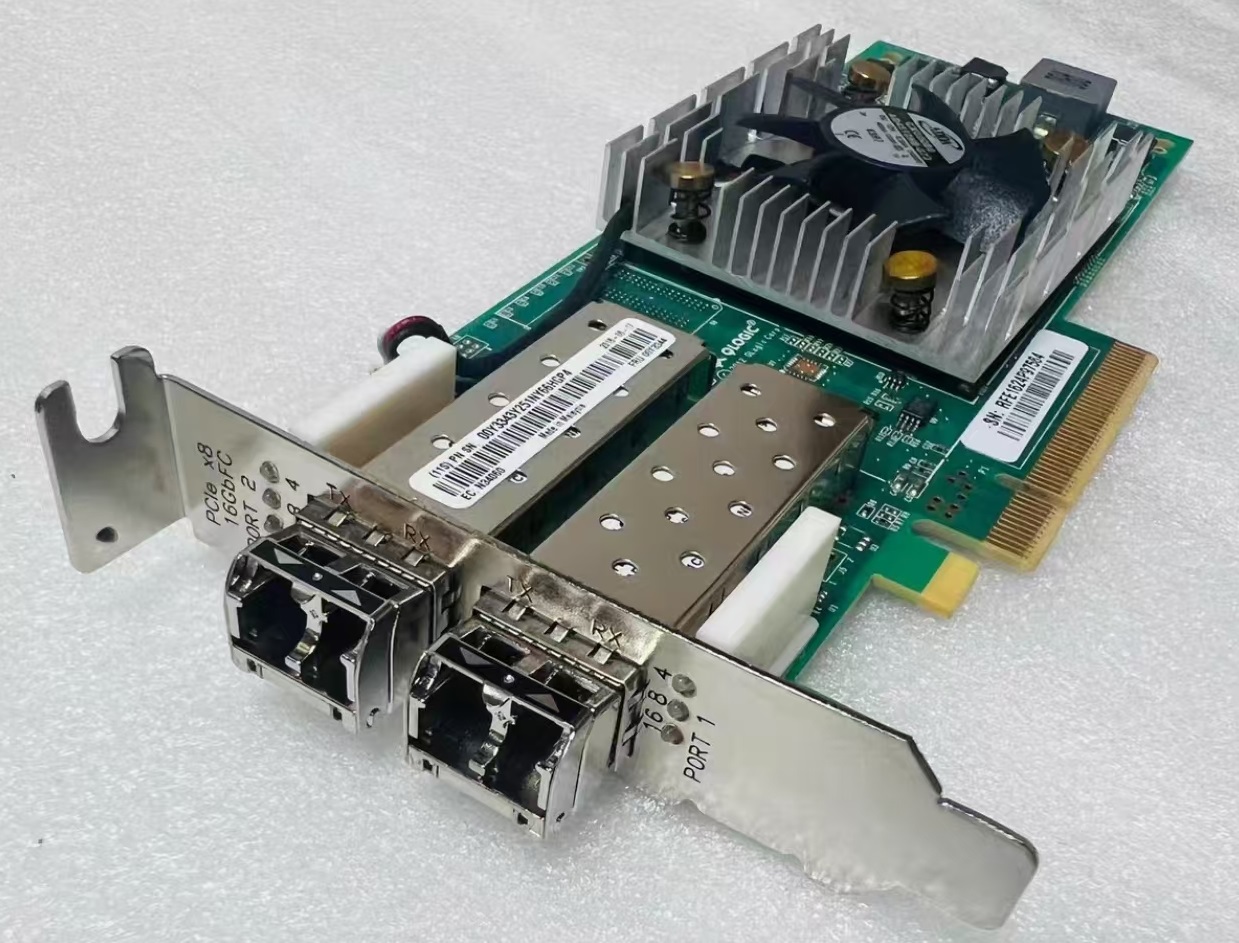

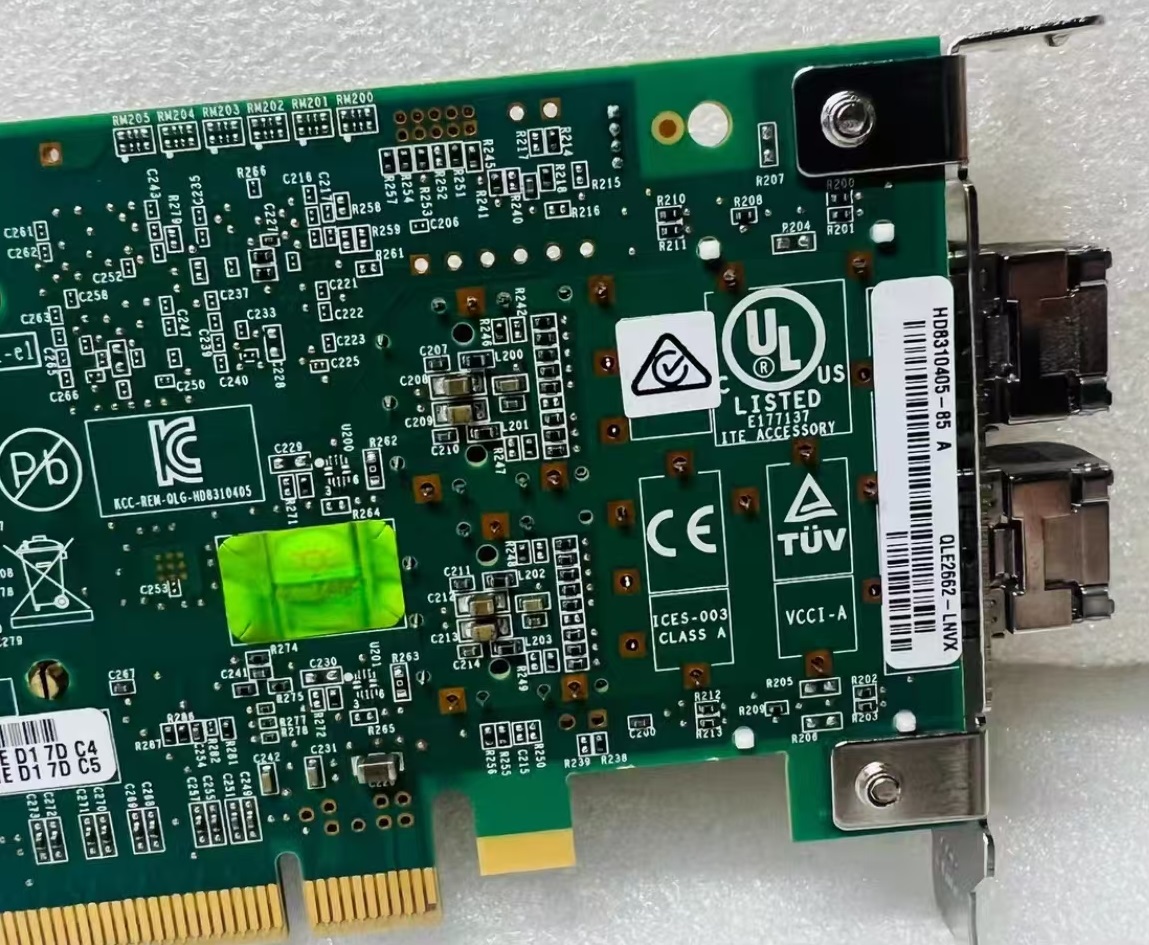

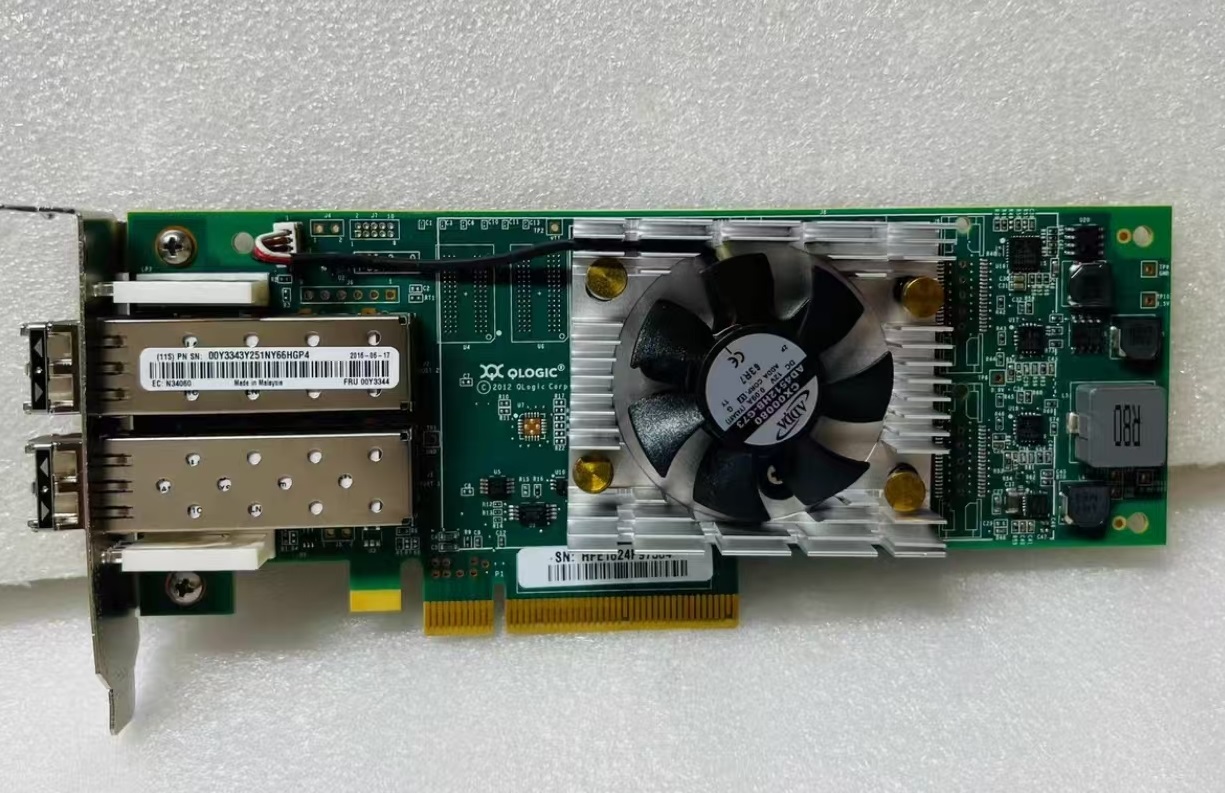

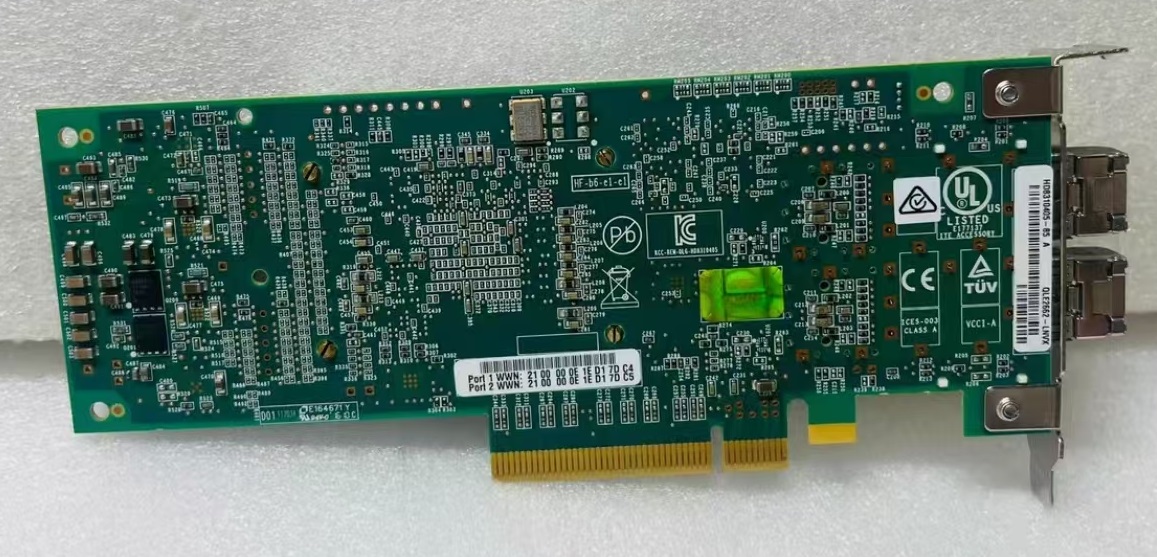

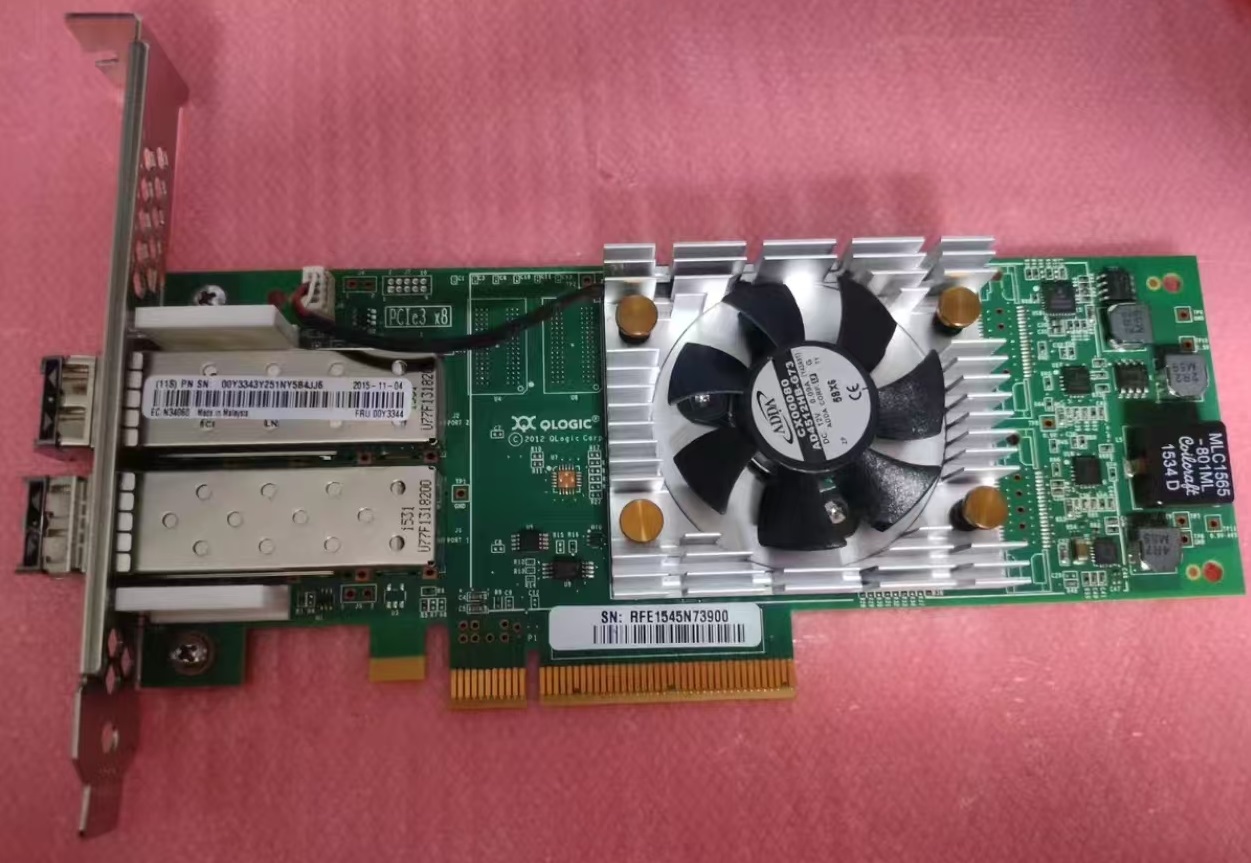

Original Lenovo QLE2662-LNV 00Y3341 00Y3343 00Y3344 16G dual port fiber HBA card

QLE2662-LNV/Lenovo 00Y3341/3343/3344 Fiber Channel HBA Product Introduction

1. Product Overview

This series is a 16Gbps Fiber Channel (16GFC) adapter developed in collaboration between Lenovo and Marvel (formerly QLogic), specifically optimized for Lenovo ThinkSystem and System x servers, providing enterprise grade SAN connectivity solutions. Includes the following models:

QLE2662-LNV: Standard Retail Model (Universal Server)

00Y3341: Single port (full height/low baffle optional)

00Y3343: Dual port (full height/low baffle optional)

00Y3344: Dual port short profile (Low Profile, space optimized)

2. Comparison of core features

Model, Port Number, Host Interface, Special Design, Typical Application Scenarios

QLE2662-LNV Dual Port PCIe 3.0 x8 Standard Full Height Universal Enterprise Storage Environment

00Y3341 Single Port PCIe 3.0 x8 Optional Low Barrier Basic SAN Connection Requirements

00Y3343 dual port PCIe 3.0 x8 optional low barrier high availability/redundant configuration

00Y3344 Dual Port PCIe 3.0 x8 Forced Short Block 1U/2U Rack Server

Common advantages:

16GFC performance (3.2GB/s full duplex), compatible with 8GFC/4GFC

QLogic 5th generation architecture: Hardware accelerated I/O, latency<1.2 microseconds

End to end data integrity: Supports T10 PI (DIF/DIX)

Virtualization optimization: NPIV (128+virtual ports), SRIOV support

3. Technical specifications

Protocol support:

Native FCP-4 (SCSI)

Optional FC NVMe (NVMe enabled storage required)

SFP+interface:

Support hot plugging, maximum transmission distance:

Multimode (OM3/OM4): 100m @ 16GFC

Single mode (OS2): 10km (requires authentication module)

Management function:

Lenovo XClarity Integration

QLogic SANsurfer Management Suite

VMware HANA plugin support

4. Typical application scenarios

Full flash storage acceleration: connected to Lenovo DM5000F/IBM FlashSystem

Virtualization infrastructure: VMware vSAN, Microsoft S2D FC backend

Database cluster: shared storage for SAP HANA and Oracle RAC

Blade server: 00Y3344 compatible with ThinkSystem SR650/SR670

5. Compatibility Matrix

Authentication Server:

ThinkSystem SR/SD/ST series

Old System x3650/x3850

Storage compatibility:

Lenovo Storage D Series

IBM DS8000/FlashSystem

NetApp/EMC Unity (switch compatibility needs to be verified)

Operating System:

Windows Server 2012 R2-2019

RHEL 7/8, SLES 12/15

VMware ESXi 6.5-7.0U3

AIX 7.2+(requires special drivers)
