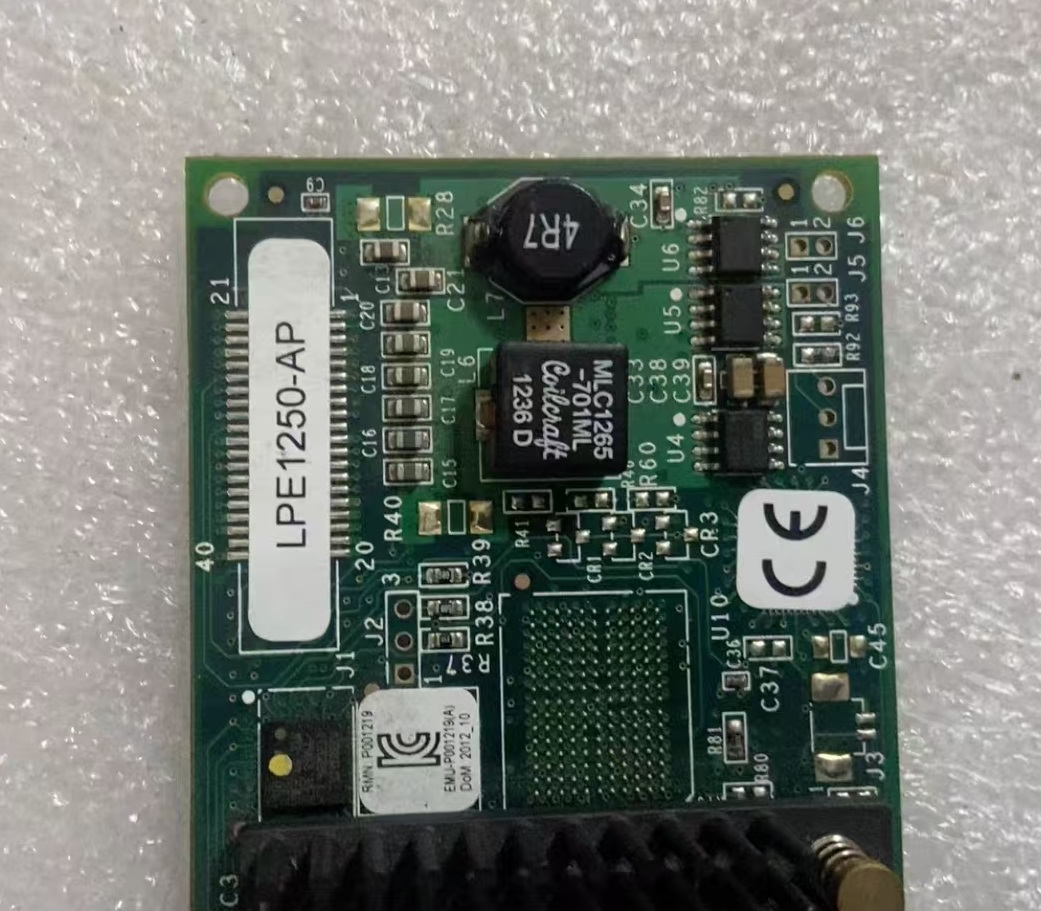

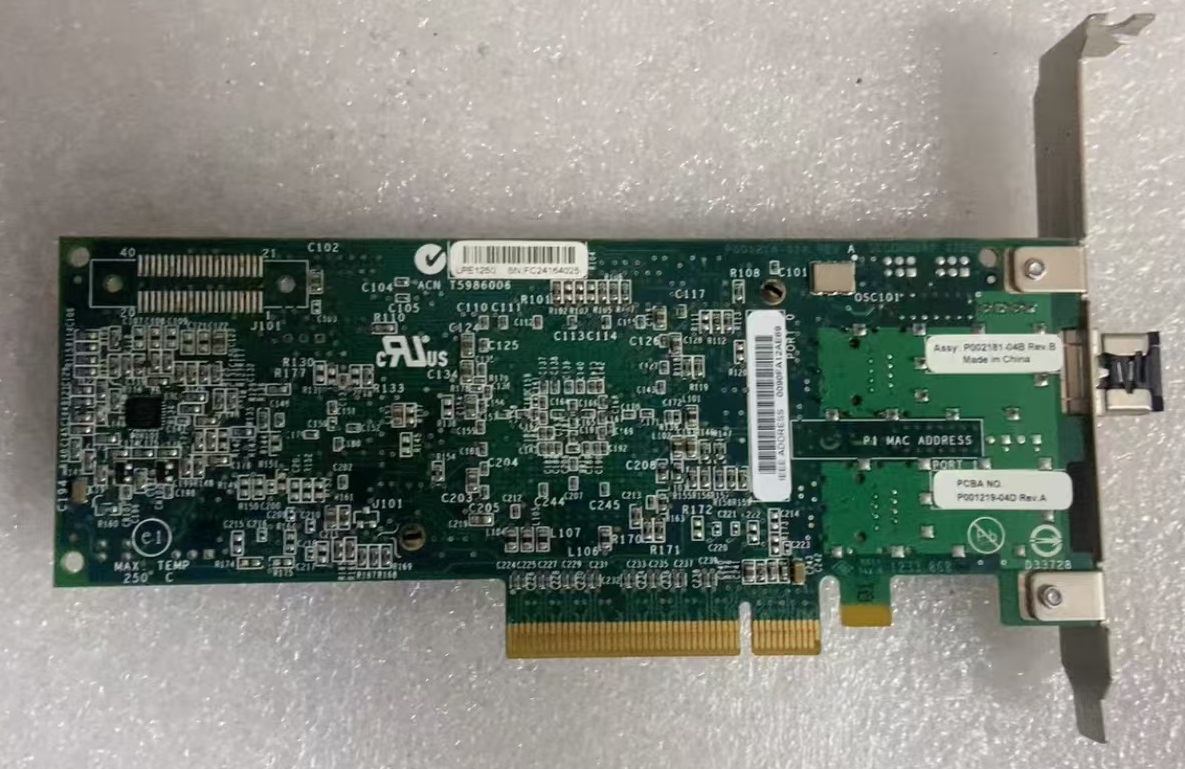

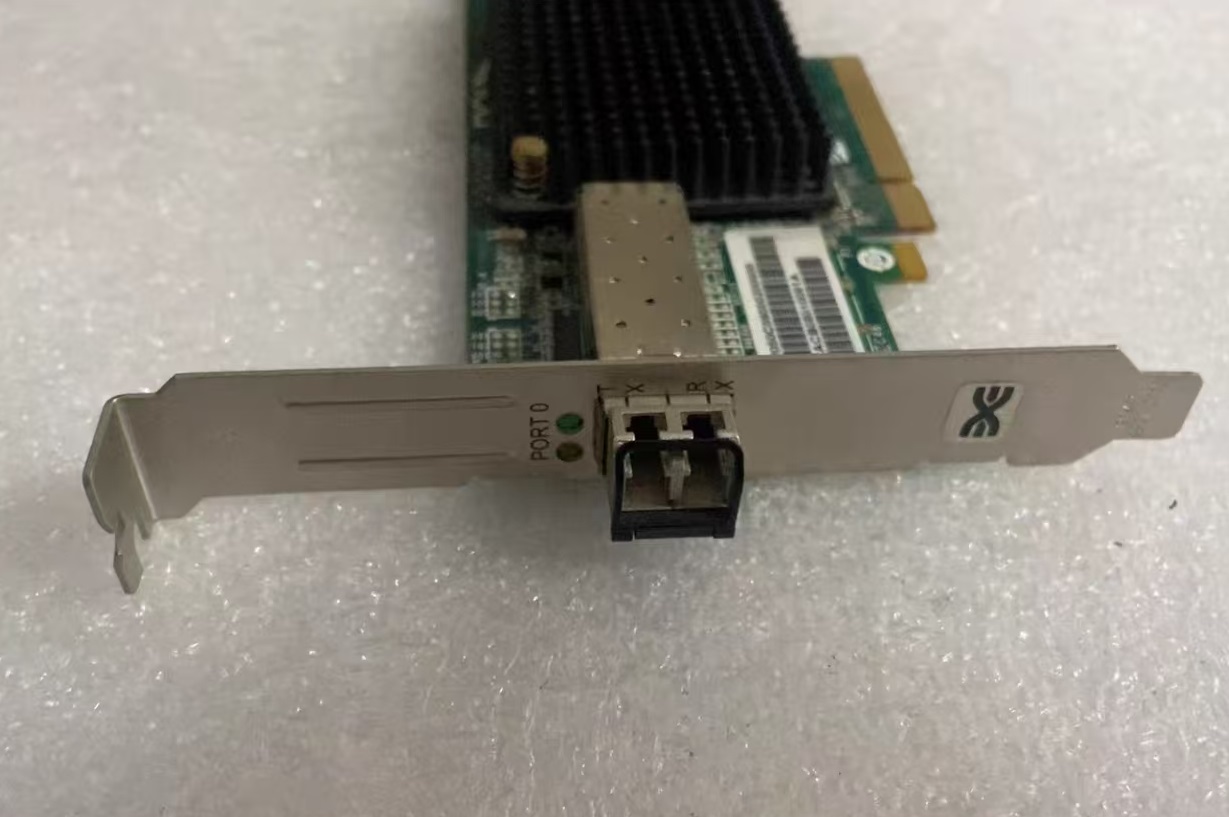

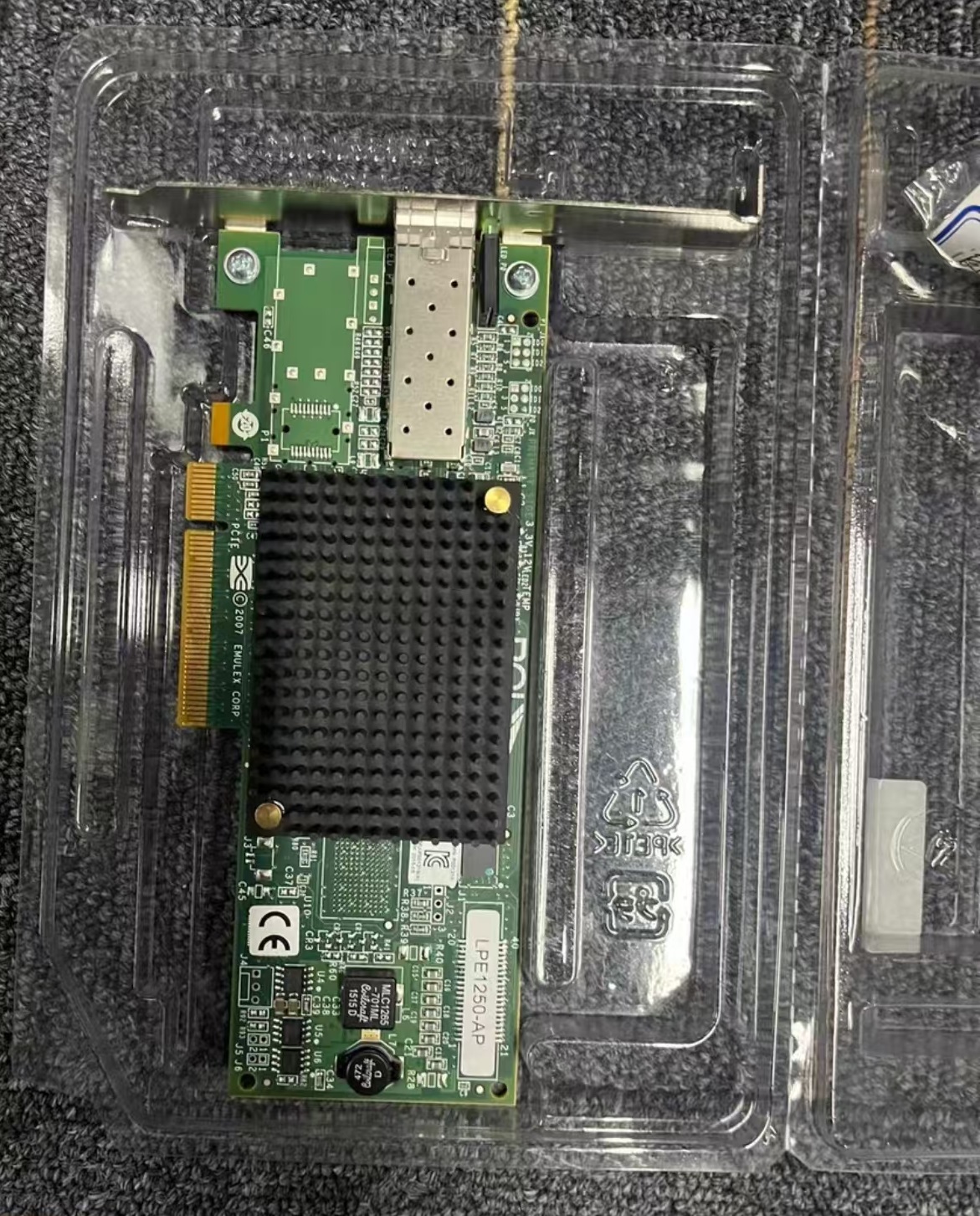

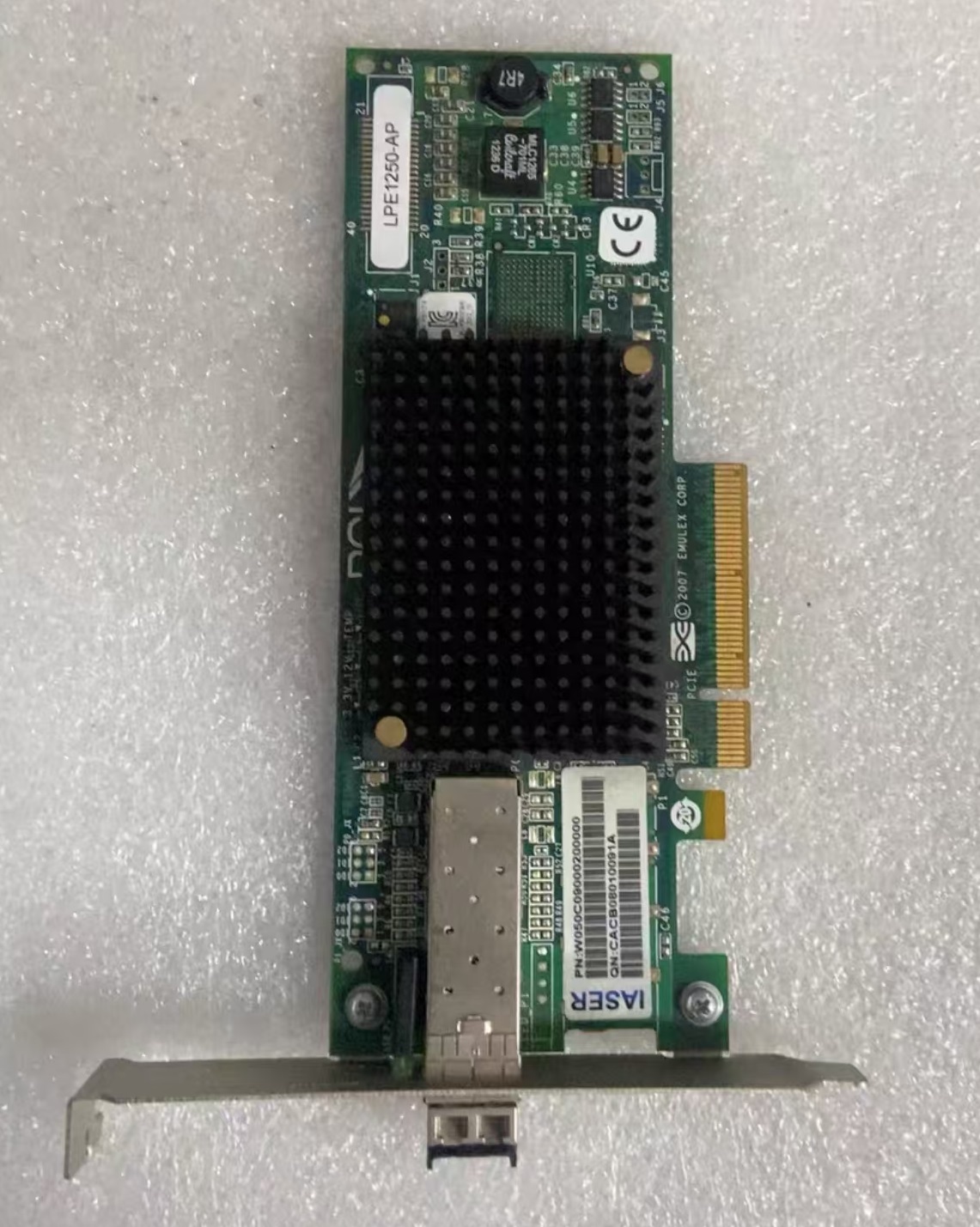

Original EMULEX LPE1250-AP 8Gb single port fiber optic card HBA

product overview

Emulex LPe1250-AP is a high-performance 8Gb/s single port fiber channel host bus adapter (HBA) designed for enterprise level applications that require reliable and efficient storage connectivity. This adapter adopts PCI Express (PCIe) interface, providing excellent I/O performance and is an ideal choice for building storage area networks (SANs).

As an Emulex LightPulse ® The LPe1250-AP series of products has been optimized in terms of performance, reliability, and management capabilities, making it suitable for virtualized environments, database applications, and critical business storage systems.

Key features and advantages

1. High performance storage connection

Supports 8Gb/s fiber channel speed (backward compatible with 4Gb/s and 2Gb/s)

Provide full duplex bandwidth of up to 800MB/s

Adopting Emulex's fourth generation architecture to optimize I/O processing efficiency

2. Enterprise level reliability

Support multi-path I/O (MPIO) to improve storage availability

Hardware level error detection and recovery mechanism

Support Boot from SAN functionality

3. Virtualization optimization

Compatible with mainstream virtualization platforms such as VMware iPadOS and Microsoft Hyper-V

Support N_Port ID Virtualization (NPIV) technology

4. Simplify management

Centralized management can be achieved through Emulex OneCommand Manager

Support SNMP and API integration

Provide diagnostic LED indicator lights for easy troubleshooting

5. Energy saving design

Dynamic Power Management Technology

Compliant with RoHS environmental standards

technical specifications

Project Specification Description

Interface standard 8Gb Fibre Channel (compatible with 4Gb/2Gb)

Host interface PCI Express 2.0 x4

Number of ports: 1 SFP+port

The protocol supports FC-PI-4, FCP-4, SCSI-3

Maximum bandwidth of 800MB/s (full duplex)

The operating system supports Windows Server, Linux (RHEL/SLES/Ubuntu), VMware iPadOS, Solaris

Management tool Emulex OneCommand Manager

Power consumption<10W (typical load)

Passive heat dissipation method

Compliance certification FCC, CE, RoHS

Application scenarios

Enterprise storage network: connecting storage arrays such as EMC, NetApp, HPE, etc

Virtualization Platform: Provides high-performance storage connectivity for VMware and Hyper-V

Database application: supports critical business systems such as Oracle and SQL Serve

Small and Medium sized Enterprise SAN: An Economically Efficient 8Gb FC Solution
