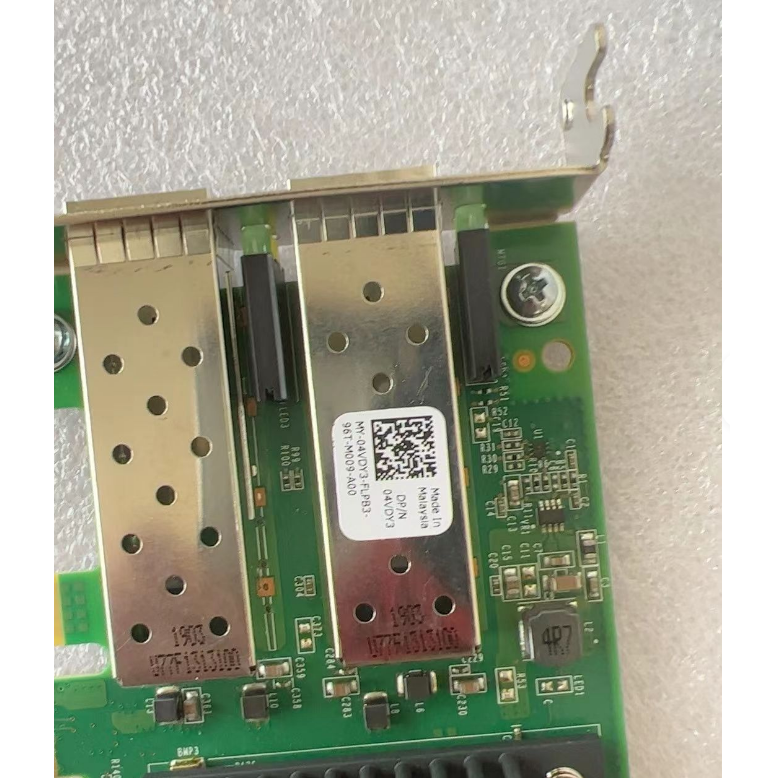

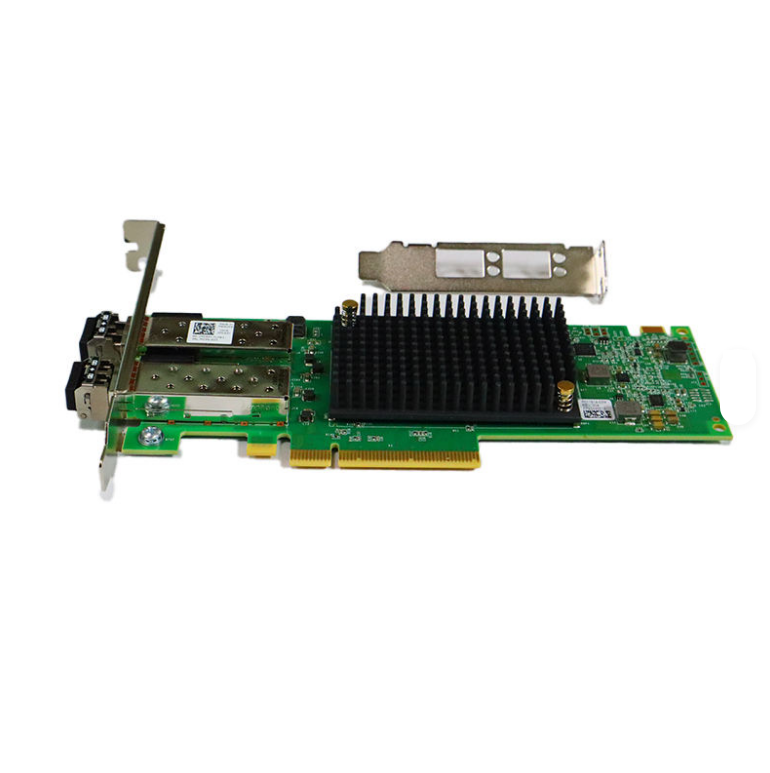

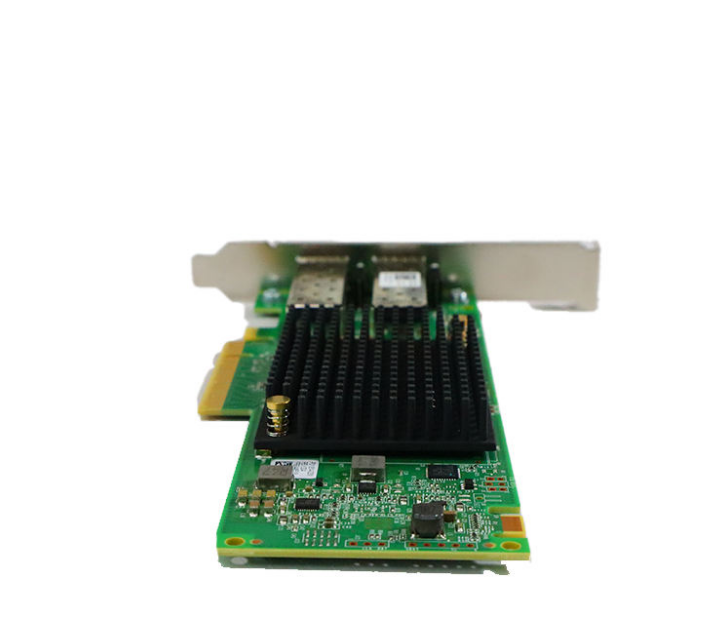

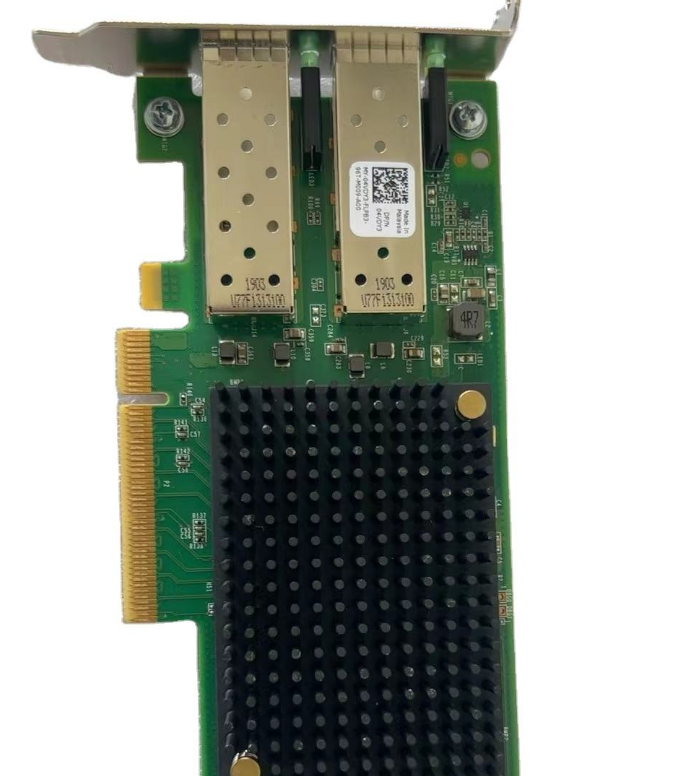

04VDY3 4VDY3 406-BBMR Emulex LPe35002 Dual Port FC32 Fibre Channel HBA Network Adapter

Dell 0VMX26/04VDY3 (LPe35002) Product Introduction

1. Product Overview

Dell 0VMX26 (part number 04VDY3, model LPe35002) is a high-performance fiber channel HBA card (Host Bus Adapter) based on Broadcom/LSI Emulex technology, designed specifically for Dell PowerEdge servers and storage systems. Supports high-speed SAN (Storage Area Network) connectivity, suitable for enterprise level storage virtualization, databases, and critical business applications.

2. Key characteristics

Interface standard:

Fiber Channel protocol: Supports 16Gbps/32Gbps (specific speed depends on sub model).

Host interface: PCIe 3.0 x8 (compatible with PCIe 4.0, backward compatible).

Port configuration:

Single port or dual port SFP+(pluggable fiber optic module).

Performance indicators:

Full duplex bandwidth: up to 32Gbps (dual port model).

Low latency: Optimize hardware architecture with latency less than 1 microsecond.

compatibility:

Supports mainstream operating systems: Windows Server, Linux (RHEL/SLES), VMware iPadOS.

Compatible with Dell EMC PowerVault, Unity, and SC series storage.

Advanced features:

Supports NPIV (N_Port ID Virtualization) and Multipath I/O (MPIO).

Hardware acceleration: TCP/IP offloading, data encryption (optional).

Green Energy Saving: Supports Dell OpenManage power management.

3. Application scenarios

Enterprise level SAN storage network expansion.

Virtualization platforms such as VMware vSAN and Microsoft Hyper-V.

High performance databases (Oracle, SQL Server) storage connections.

Disaster recovery and storage replication (integrated with Dell EMC solutions).

4. Physical specifications

Dimensions: Standard half height/full height PCIe card (with optional Low Profile bezel).

Heat dissipation design: Fanless passive heat dissipation (some models support active heat dissipation).

Working temperature: 0 ° C~55 ° C (commercial grade).
