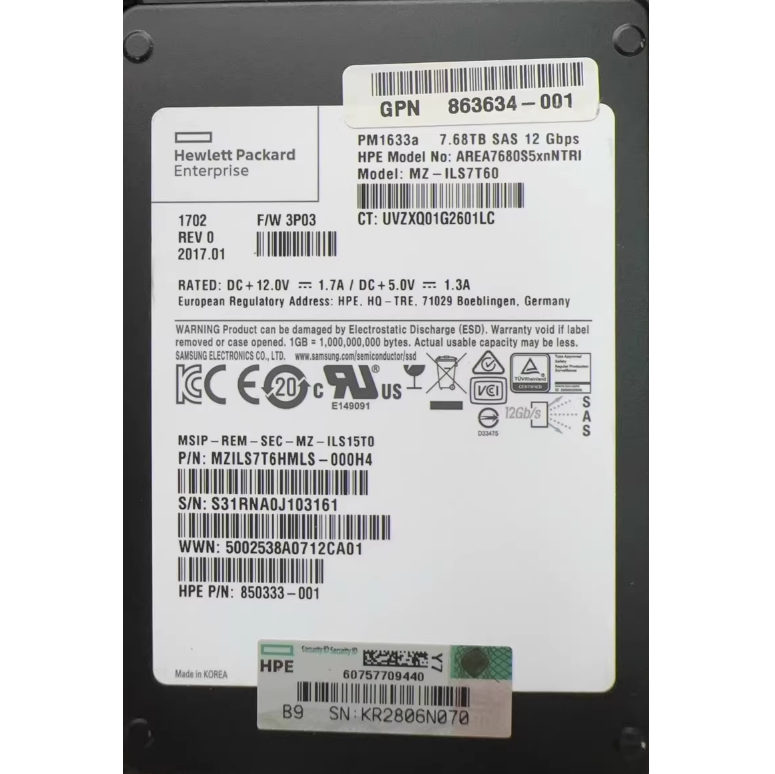

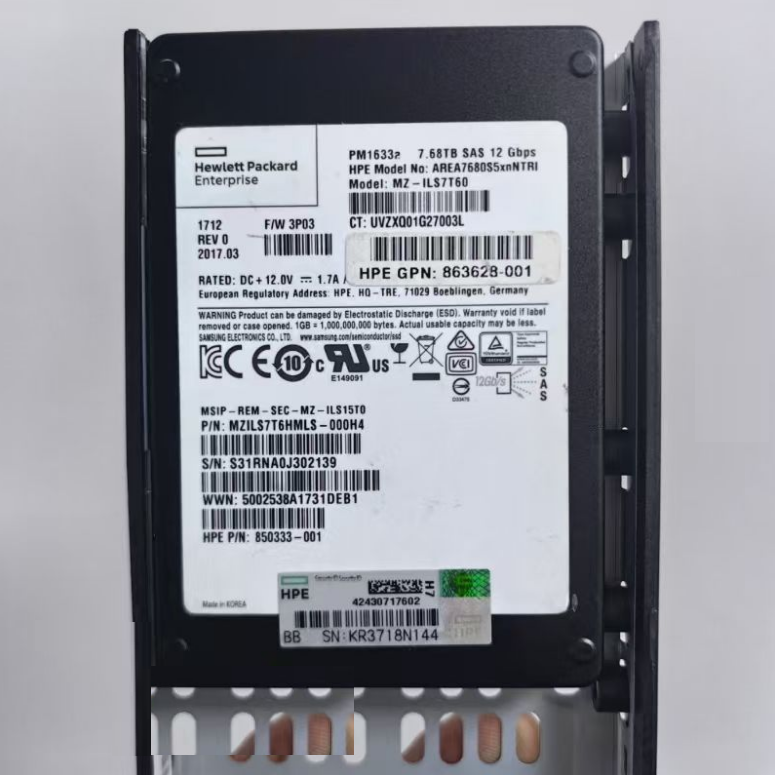

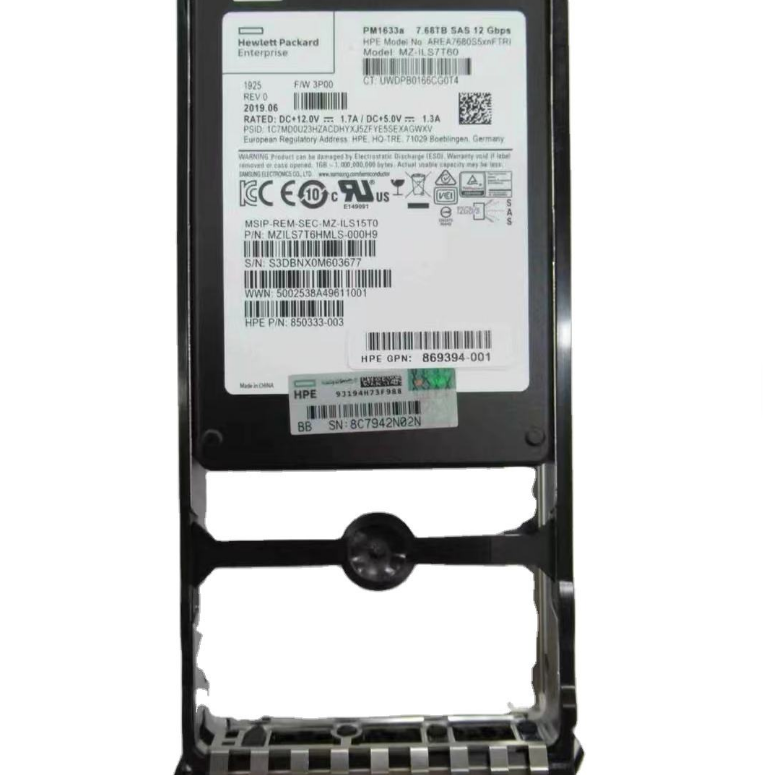

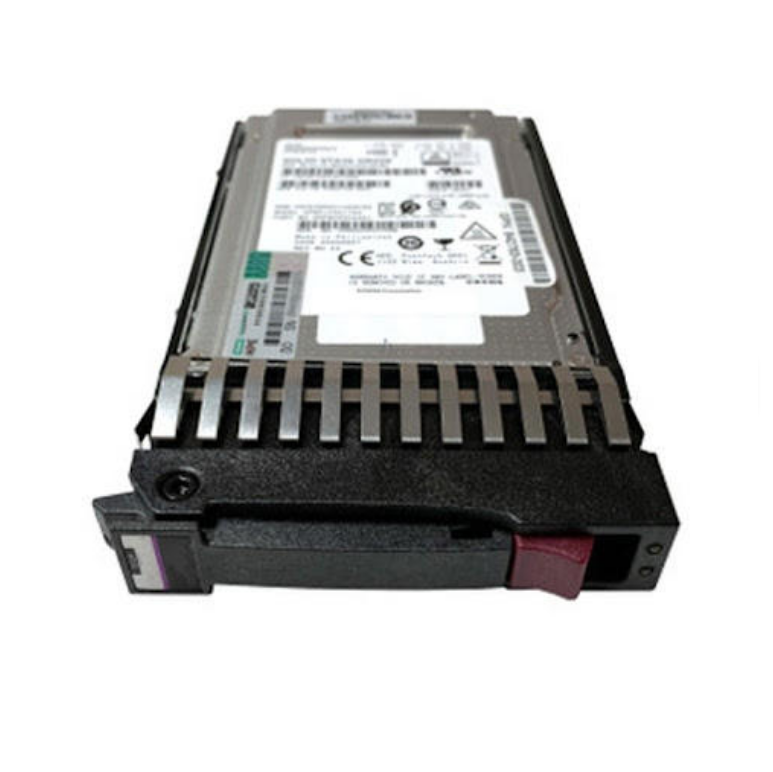

H-P-E PM1633A 7.68TB SAS 12G RI SFF SC DS SSD Read Intensive 2.5in Solid State Drive 850333-003 for 3PAR 8000

HPE 850333-003 (PM1633a) 7.68TB NVMe SSD Enterprise Solid State Drive Product Introduction

Product Overview

         HPE 850333-003 (disk body model PM1633a) is a high-performance enterprise level NVMe solid-state drive that utilizes an enterprise level solution developed in collaboration between HPE and Samsung. This hard drive is designed specifically for enterprise critical business systems that require high-performance and large capacity storage, achieving the best balance between performance, capacity, and reliability. It is suitable for applications such as virtualization, databases, and cloud computing.

 1. Core features and specifications

       Capacity specification: 7.68TB

       (Adopting enterprise level reserved space design, OP configuration ensures long-term performance stability)

        Interface protocol: NVMe 1.3 over PCIe 3.0 x4

         Appearance specification: 2.5 inches U.2 (SFF-8639)

        Performance performance:

        Continuous reading speed: up to 3200 MB/s

        Continuous write speed: up to 2200 MB/s

         Random read IOPS: up to 800000 (4K)

         Random write IOPS: up to 120000 (4K)

        Durability index:

        DWPD: 1.0 (5-year warranty period)

        TBW：14.0PB

       MTBF: 2 million hours

       Flash Memory Type: 3D V-NAND TLC

       (Using vertical stacking TLC technology to provide excellent capacity and performance balance)

2. Advanced features

       Enterprise level power protection:

       Integrated supercapacitor protection circuit ensures data integrity in case of abnormal power outage

       End to end data protection:

       Adopting a 128 bit CRC checksum and metadata protection mechanism

       Intelligent wear balance:

      Support dynamic and static wear balance to extend service life

       Thermal management function:

       Built in temperature sensor, supporting adaptive thermal throttling

        Secure encryption:

       Supports AES 256 bit hardware encryption, compliant with security standards 3.         Applicable scenarios

       Enterprise level database:

       Large scale database storage such as Oracle and SQL Server

       Virtualization platform:

       VMware HANA, Microsoft Hyper-V virtualization environment

       Cloud computing:

        Primary storage for public and private cloud platforms

        Big data analysis:

        Real time data processing and analysis applications

        Media storage:

       Video editing and content creation storage

4. Compatibility information

       Support platform:

       HPE ProLiant DL360 Gen10

       HPE ProLiant DL380 Gen10

       HPE Apollo 4200

       HPE Synergy 480 Gen10

      System requirements:

      UEFI 2.4 or higher version is required

      Supports NVMe 1.3 and above protocols
