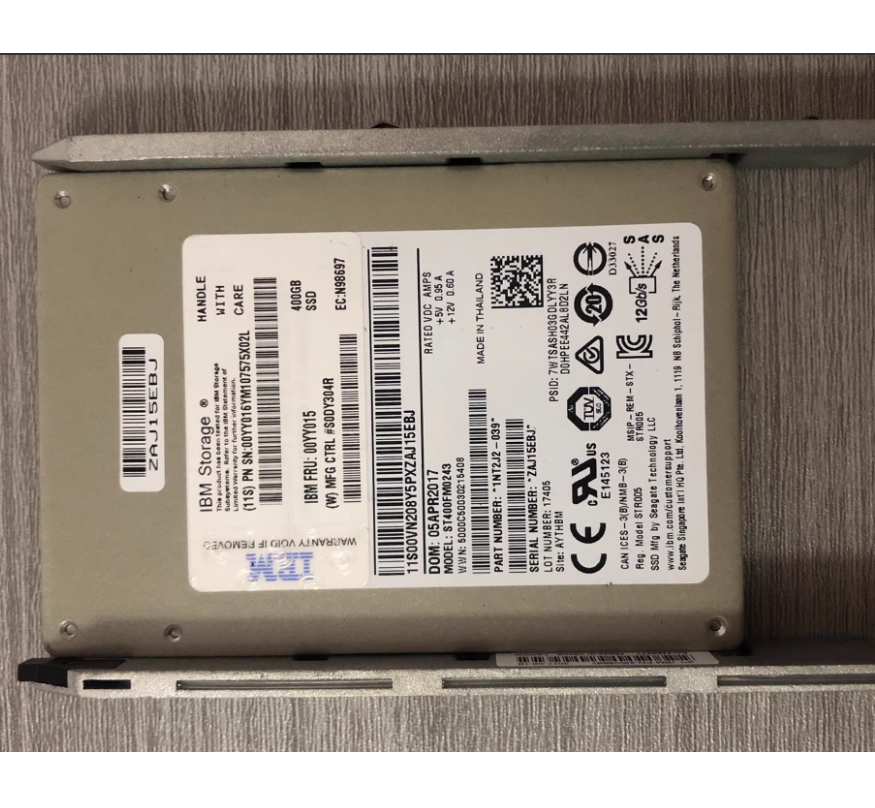

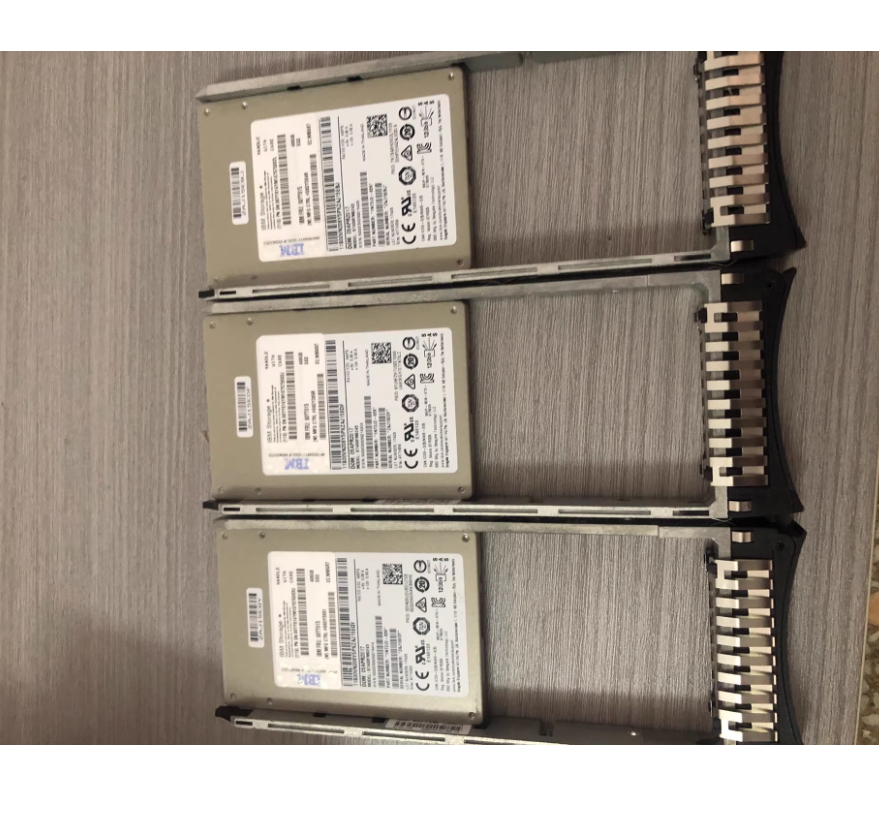

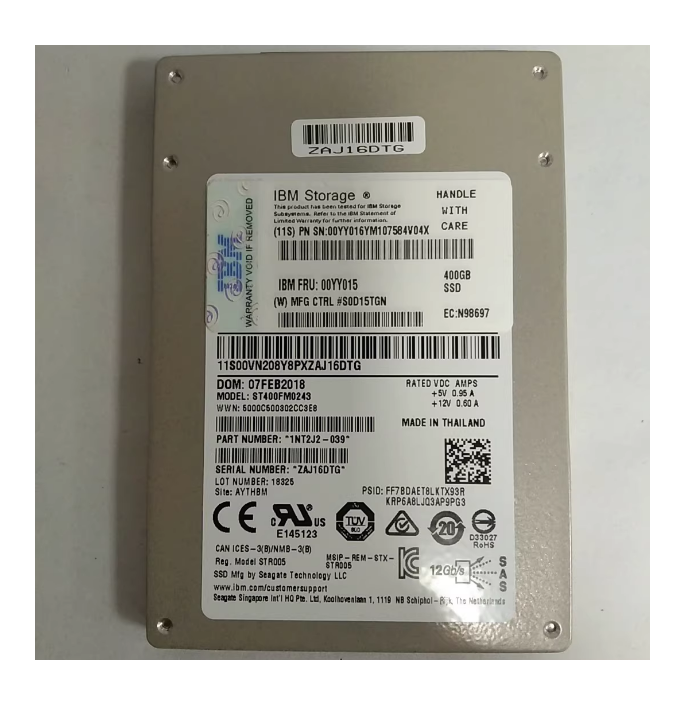

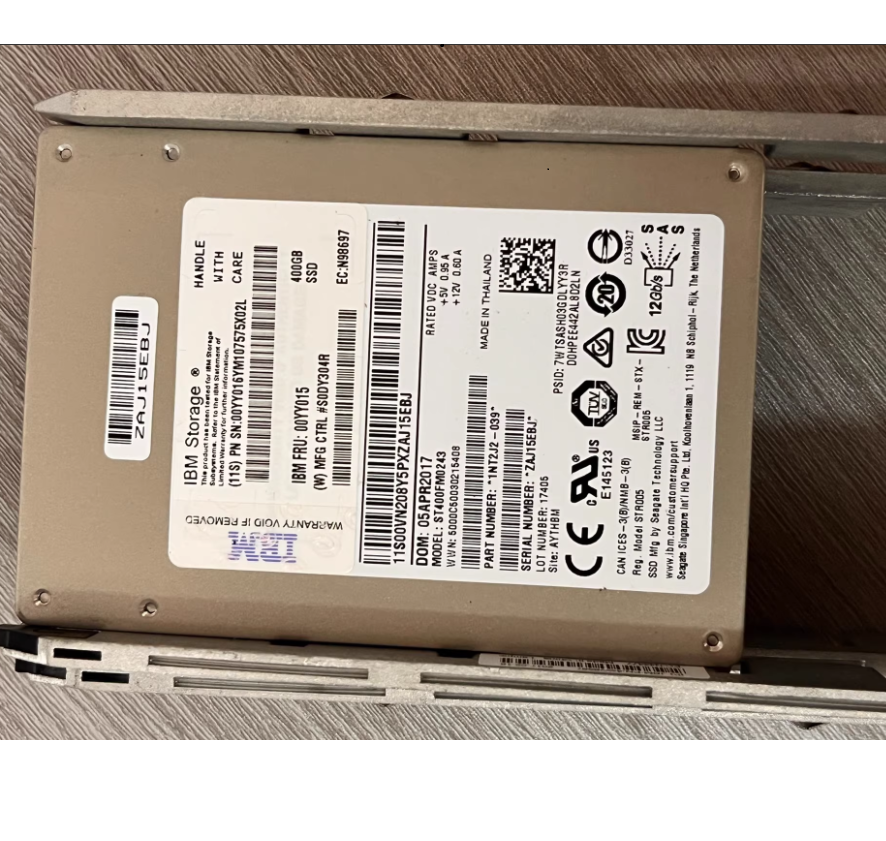

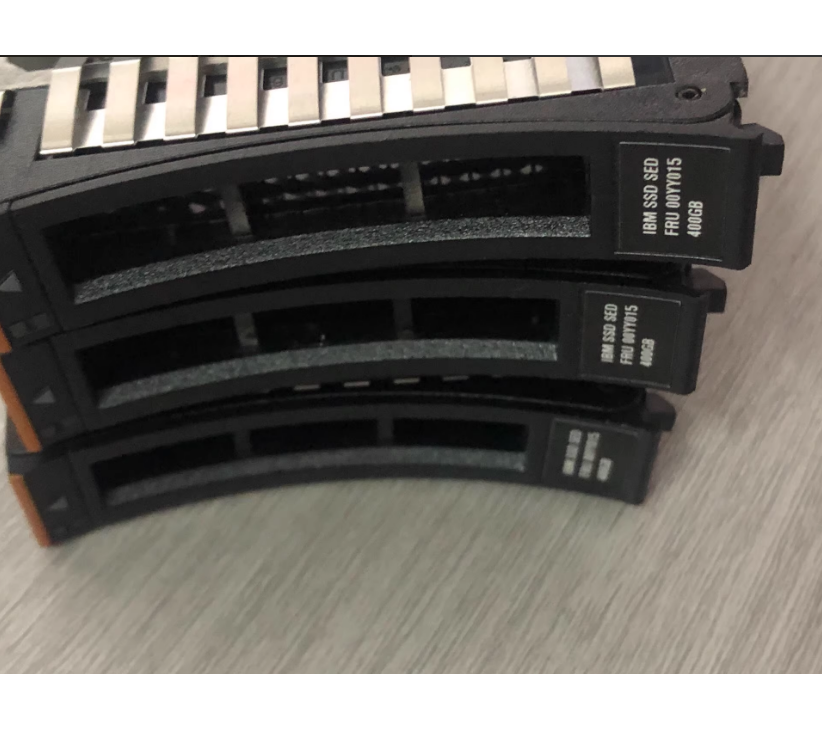

Original genuine 00Y015/00Y016 400GB SAS hard drive enterprise grade disk body with original bracket

Product Description

1.Product Overview

Original enterprise grade hard drive | 400GB SAS 12Gb/s high-performance hard drive (dual models available: 00Y015/00Y016) - an efficient storage solution designed specifically for critical enterprise applications

2.Core advantages

Speed performance

Adopting SAS 12Gb/s high-speed interface, providing excellent read-write performance, random read-write speed increased by 40%, meeting high-performance computing requirements

Authentic IBM Quality

Original IBM server components undergo rigorous compatibility testing and quality control to ensure stable system operation

Enterprise level reliability

Supports 24/7 uninterrupted operation, with an average time between failures (MTBF) of 2 million hours and an annual workload of 550TB

Intelligent cache management

Equipped with large capacity cache and intelligent pre reading algorithm, significantly improving data access efficiency

Energy saving and environmentally friendly design

Adopting low-power technology to reduce energy consumption while ensuring performance, in line with green data center standards

3.Technical specifications

Detailed specifications of parameter categories

Hard drive model 00YY015 or 00YY016

Storage capacity 400GB

Interface standard SAS 12Gb/s

Speed 10000 RPM

Cache size 128MB

Appearance specification 2.5 inches

Average latency of 2.9ms

Power consumption running: 5.8W | standby: 3.6W

Compatible with IBM System x series servers

4.Compatible system

Perfect compatibility platform:

System x3650 M4/M5

System x3550 M4/M5

Storwize V3500/V3700

FlashSystem 7200

DS8000 series

Other IBM systems that support SAS 12Gb/s interface

5.Application scenarios

Enterprise level application environment:

System Startup Disk - As a server operating system and application installation disk

Database Cache - Database Hotspot Data Cache and Temporary Tablespace

Virtualization Storage - Virtual Machine System Disk and Configuration File Storage

Log Storage - Storage of System and Application Logs

Fast Backup - Fast backup and recovery of important data

Edge computing - Local storage solution for edge computing nodes

6.Quality Assurance

100% original IBM components, providing genuine verification

Pass the 72 hour high-temperature aging test

Provide a complete SMART health status report

Professional technical support services

Support on machine testing and verification

7.Installation requirements

system requirements

A server backplane that supports SAS 12Gb/s interface is required

Firmware Version

Recommend using the latest IBM system firmware version

environmental conditions

Operating temperature: 5°C to 55°C

Storage temperature: -40°C to 70°C

Humidity: 8% to 90% non condensing

Installation recommendations

Recommend installation and configuration by professional technicians

8.Service Support

Professional technical consultation - providing complete technical specifications and compatibility guidance

Installation configuration support - provide detailed installation configuration documentation

Batch purchase discount - supports enterprise level batch purchase needs

Quick Response Service - Professional Technical Team with 24/7 Support

Spare parts support - providing fast spare parts replacement services

Huaxing Xintongcan provide sales of a large number of new or used transmission equipment, servers, communication power systems, routers, base station equipment, switches, SFPs, storage devices, and other communication products. We have extensive knowledge and experience in product operation and maintenance. We have multiple professional technical personnel to provide testing for our products, ensuring that every refurbished spare part is perfect. It can reduce costs for your network maintenance. Looking forward to working with you.
