00DJ316 00DH514 4TB NL-SAS Hard Drive 7.2K RPM 3.5in Enterprise Class For Storwize V7000/FlashSystem

Product Description

1.Product Overview

This is an original factory-launched enterprise-grade high-capacity hard drive in the standard 3.5-inch specification, offering 4TB of storage at 7,200 RPM. The hard drive uses 6Gb/s NL-SAS (Near Line SAS) The interface, which perfectly combines the high reliability of SAS interfaces with the economics of SATA hard drives, is the ideal capacity expansion solution for Storwize series storage systems.

Product identification:

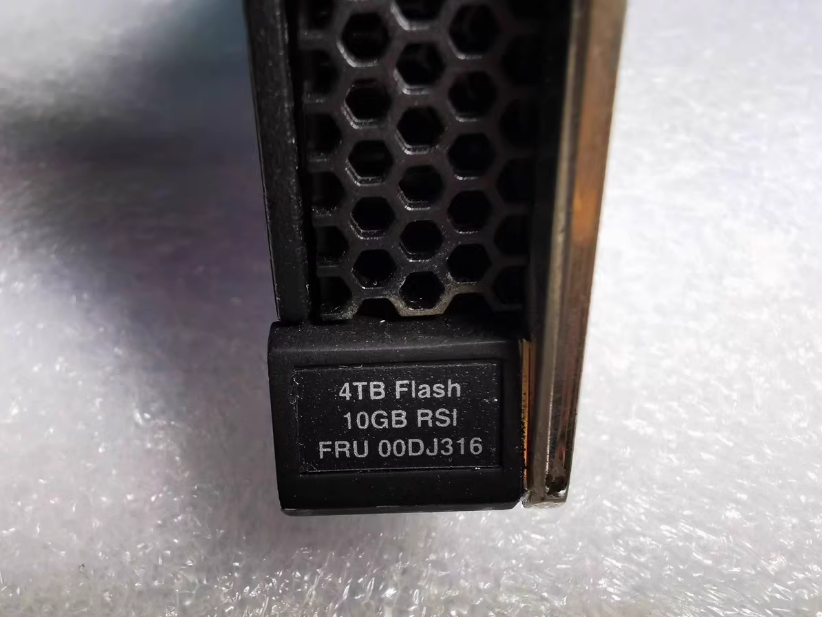

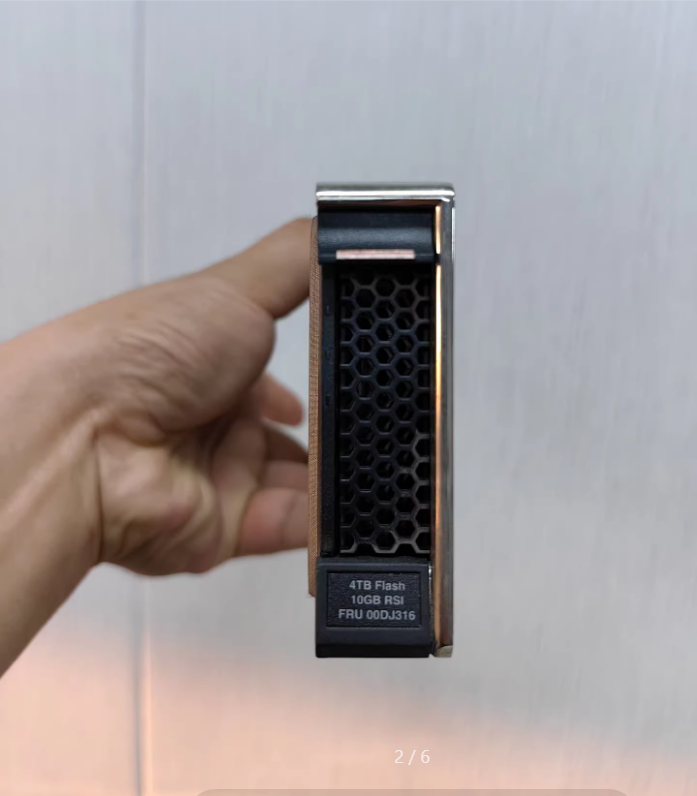

00DJ316: FRU (Field Replaceable Unit) number of the hard drive unit

00DH514: FRU number for drive kit with dedicated tray

NL-SAS: Near-line SAS interface for enterprise-grade reliability

2. Technical Specifications

Parameter Category Detailed Specification

Model 00DJ316

Kit Model 00DH514

Storage capacity 4 TB

Interface Type 6Gb/s NL-SAS

Physical Specifications 3.5-inch Enterprise Specifications

Spindle speed 7,200 RPM

Cache capacity 128MB

Average delay 4.17 ms

MTBF 2 million hours

Operating Temperature 5°C to 55°C

Power Consumption: 6.5W, Standby: 4.5W

3.Core Features

1. Excellent reliability

2 million hours of average failure-free time (MTBF)

Support 7×24 hours continuous operation

Dual port redundancy

Advanced error recovery control

2. High performance

7,200 RPM for stable performance

128MB high-capacity cache for improved data transfer efficiency

6Gb/s SAS Interface Bandwidth Guarantee

Optimized search time characteristics

3. Enterprise-level functions

Supports hot plug replacement

Hard drive status indicator

Support for SES-2 environmental monitoring

Native command queue function

4. Easy maintenance

Includes dedicated mounting tray (00DH514)

Tool Installation Free Design

Support for online replacement

Insert-and-use recognition

4.Compatibility Information

Support system:

Storwize V7000 Full Series

Storwize V5000 Series

FlashSystem 5200/7200

DS5000 Series

Flex System Storage Extension Units

Compatible case:

All IBM memory boxes with 3.5-inch disk space

Requires SAS interface backboard support

Supports standard 2.5-inch to 3.5-inch adapters

5.Application Scenario

Ideal Application Environment:

Enterprise Data Archive Storage

Backup and disaster storage

Video surveillance storage system

Virtualized Platform Data Storage

File Sharing and NAS Storage

Cold data storage layer

Test development environment

Secondary Storage Applications

Scenes not recommended:

High-performance database master storage

Frequently accessed thermal data storage

High IOPS Requirements

Real-time transaction processing system
