For Netapp 108-00741 108-00857 108-00743 108-00745 108-00746 108-00744 108-00843 108-00883 108-00902 Nvme SSD

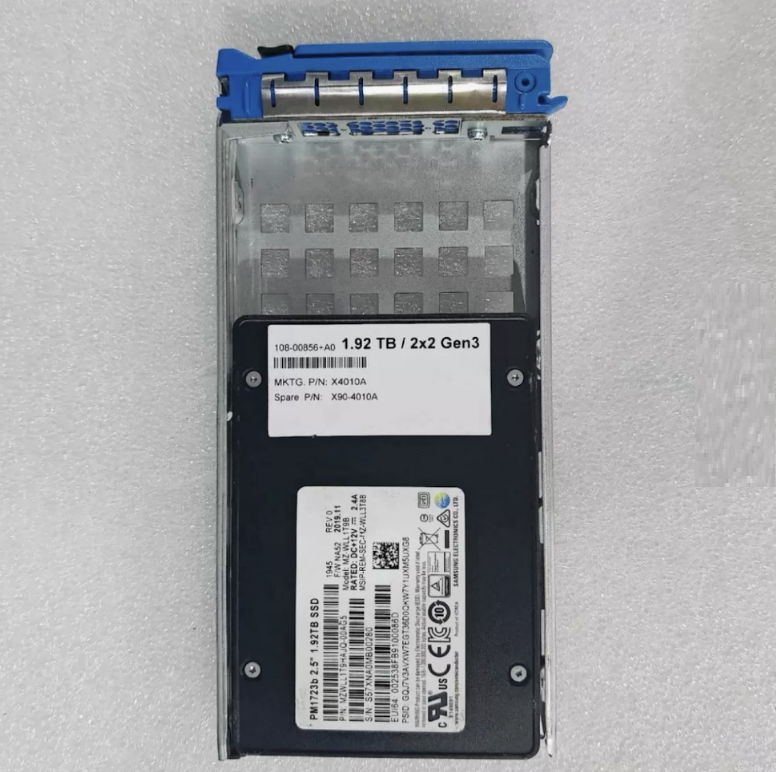

NETAPP Enterprise NVMe Solid State Drive - Model 108-00741 (X4010A-PM1723B) Product Detailed Description

 Based on the information above, follow the instructions:

         You are a professional translator responsible for converting Chinese content into English. Please help me translate the original content

        The NETAPP 108-00741 (Product Model X4010A, Drive Model PM1723B) is a high-performance NVMe SSD designed for enterprise applications. Featuring advanced 3D TLC NAND flash technology, it offers a standard capacity of 1.92TB and is specifically engineered for high-performance, low-latency use cases. This drive is deeply optimized by NETAPP to seamlessly integrate with the ONTAP storage operating system, delivering a cost-effective storage solution for read-intensive workloads.

        Based on the above information, execute the following instructions:

        You are a professional translator responsible for translating Chinese content into English. Please help me translate the original content

         Parameter Category  Detailed Specifications

         Based on the information above, execute the following instruction:

        You are a professional translator responsible for converting Chinese content into English. Please help me translate the original text

        Manufacturer Model X4010A

        NETAPP Part Number 108-00741

        Drive Model: PM1723B

        Interface Type NVMe over PCIe

        Physical Specifications 2.5-inch U.2

        Performance Parameters

       Nominal Capacity: 1.92TB

       Available Capacity: 1.75TB (after RAID configuration)

       Read bandwidth: Up to 3,200 MB/s

       Write bandwidth: up to 1,200 MB/s

       4K Random Read  Up to 500,000 IOPS

       4K Random Write

       Up to 80,000 IOPS

       Delay: Read <90μs, Write <20μs

       Reliability Parameters

       Durability rating: 3 DWPD

       Lifetime Indicator: 10.5 PBW (Total Write Capacity)

       MTBF: 2,000,000 hours

       Warranty Period: 5 years or until durability indicators are met

III. Core Technical Features

       High-performance architecture

       Adopting PCIe 3.0/4.0 x4 interface

       Supports NVMe 1.3/1.4 standards

       Optimized read-intensive design

       Low-power, high-performance controller

2. Enterprise-grade reliability

       Typical power consumption: 8-10W

       Maximum power consumption: 14W

        Integrated power-off protection function

       End-to-end data path protection

3. Intelligent Management Function

       Support hot-swapping operations

        Online firmware update capability

       Advanced S.M.A.R.T. Monitoring

        Temperature Adaptive Performance Regulation

IV. Compatibility Information

        Supported System Models:

        AFF A220, A250, A400 series

        FAS500f, FAS8300 series

       Supported on ONTAP 9.5 and higher versions

        Case compatibility

        DS224C Disk Shelf

       AFF A Series Controller

      Supports standard 2.5-inch drive bay

V. Application Scenarios

        Reading-intensive applications

        Virtual Desktop Infrastructure (VDI)

        Content Delivery Network (CDN)

        Data analysis and report queries

2. Enterprise-level applications

         Database Read Replica

        Application server storage

         File Sharing Service

3. Cloud Service Scenario

        Virtual Machine Image Storage

        Container Persistent Storage

        Backup and Archival Storage

        Six. Product Advantages

       Performance advantages:

        Outstanding read performance

       Stable low-latency characteristics

        Strong QoS control capability
