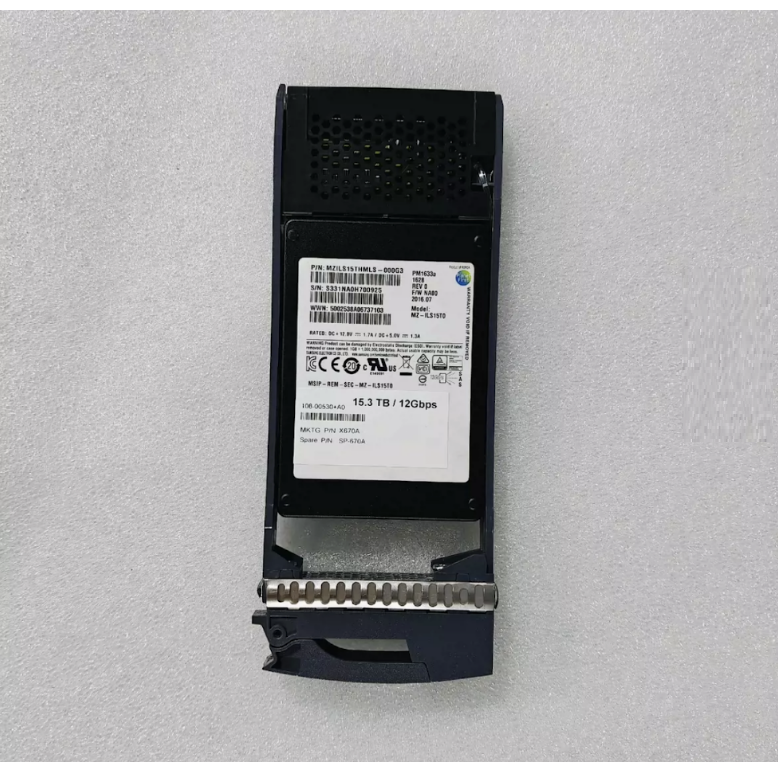

X670A 15.3TB 2.5" SAS 12Gbps SSD 108-00530 PM1643 MZ-ILT15T0 MZ-ILT15TB

NetApp Enterprise NVMe Solid State Drive -108-00530 (PM1633A) Product Introduction

Overview

         NetApp 108-00530 (drive model: PM1633A) is a high-capacity read intensive NVMe solid-state drive designed and certified by NetApp specifically for its all flash storage systems, such as the AFF series. This model offers a massive capacity of 15.36TB and features a standard 2.5-inch U.2 (SFF-8639) interface, designed to provide a high-density, low total cost of ownership (TCO) all flash storage solution for modern data centers, particularly suitable for large-scale temperature data storage and read intensive application scenarios.

      Core specifications and features

      Project Specification Description

       Product model: NetApp 108-00530

      Disk model PM1633A

      Capacity: 15.36TB

       Interface Protocol NVMe 1.3

       Appearance specification 2.5 inches U.2 (SFF-8639)

       NAND type 3D TLC NAND

       Durability/Durability 1.0 DWPD (Daily Full Disk Write Count during 5-year Warranty)

       Total 28 PBW (lifetime write volume)

        Performance sequential reading: up to 3500 MB/s

        Sequential writing: up to 1200 MB/s

        Random read: 500000 IOPS (4K)

        Random Write: 35000 IOPS (4K)

       Power consumption activity power consumption 14W

        Idle power consumption 5W

       Reliability index MTBF: 2.5 million hours

       UBER 1e (less than 1 read error per 10  17 bits)

       Key feature - ultra-high capacity density: single disk capacity of 15.36TB, significantly improving storage density

        Read optimization design: optimized for read intensive workloads

        NetApp deep integration: Pre flashed NetApp custom firmware, supporting ONTAP advanced features

         Excellent energy efficiency: Unit TB power consumption is lower than traditional hard drives

         uality assurance: rigorously certified and compatibility tested by NetApp

        Technical Highlights

         Capacity optimization architecture

         Using high-density 3D TLC NAND particles, achieve a capacity of 15.36TB in a standard 2.5-inch form

         Support NetApp capacity optimized storage pool configuration to maximize storage efficiency

         Intelligent Data Management

         Deeply integrated with NetApp ONTAP system, supporting automatic load balancing

         Support NetApp FabricPool automatic layering function

         Compatible with NetApp RAID DP and RAID-TEC protection solutions

         Enterprise level reliability

        Support end-to-end data path protection

        Built in advanced ECC error correction algorithm

        Support hot swapping and online replacement

        Applicable scenarios

        Large scale temperature data storage

       Enterprise backup and archiving repository

       Video surveillance storage

       Medical image storage

       Read intensive applications

       Large Content Resource Library

      Data analysis and business intelligence

     Software development version library

     Cloud infrastructure

      Cloud storage backend

     Super converged infrastructure capacity layer

      Virtualization storage resource pool

      system compatibility

       Supported platforms: NetApp AFF A-series, C-series all flash arrays

       Support system: ONTAP 9.5 and above versions

       Recommended configuration: Suitable for NetApp hybrid storage pool configuration

       Management Tools: Supports NetApp System Manager, Active IQ
