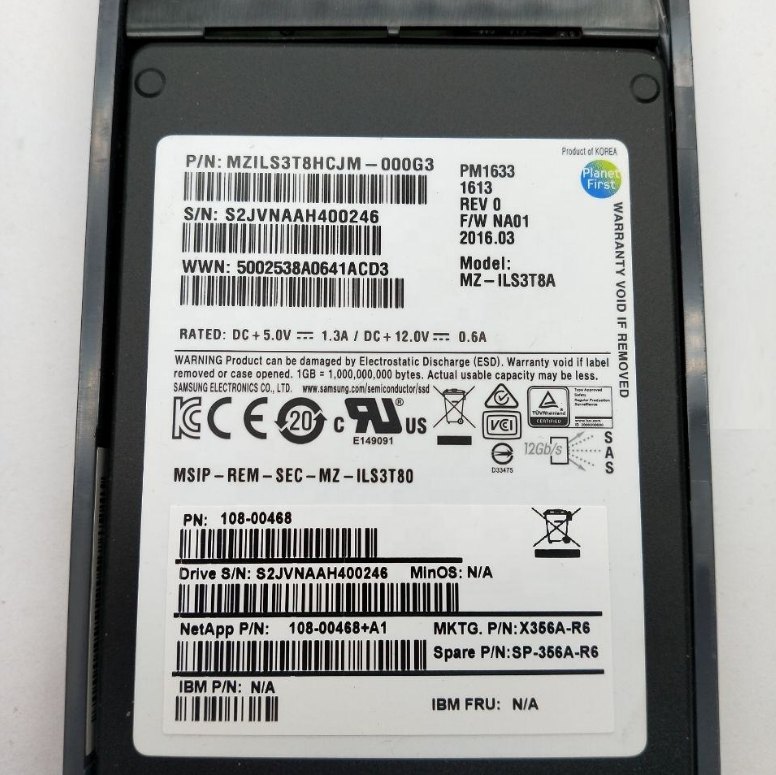

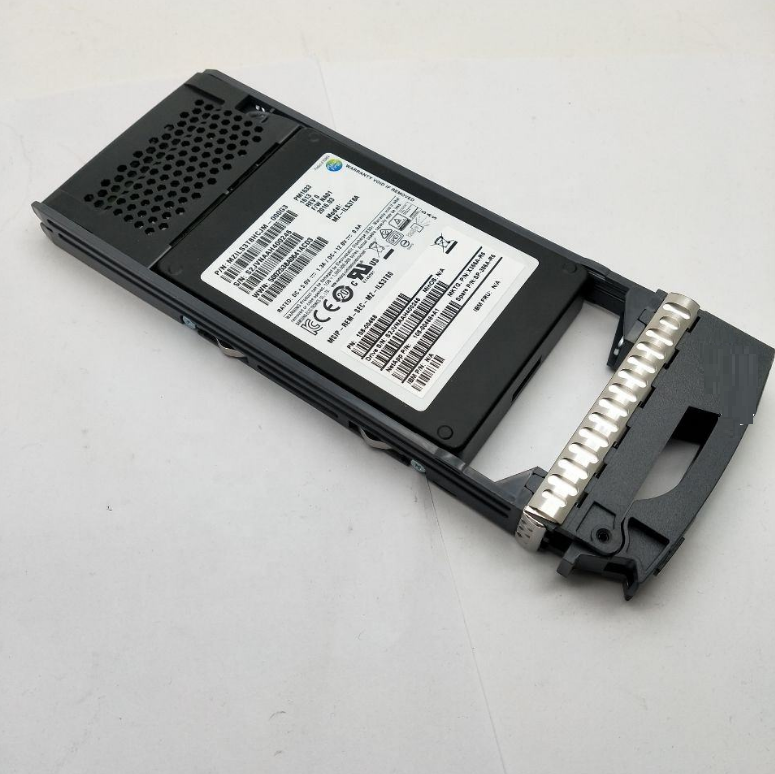

NetApp X357A 3.8TB SSD Hard Drive 12GBps 2.5" SASSP-356A 108-00468 X357A-R6 AFF DS2246

NetApp Enterprise NVMe Solid State Drive -108-00468 (X356A-R6, PM1633) Product Introduction

Overview

        NetApp 108-00468 (part number X356A-R6, disk body model PM1633) is a read intensive NVMe solid-state drive designed by NetApp specifically for its all flash storage     systems. This model offers a capacity of 3.84TB and adopts a standard 2.5-inch U.2 interface. Based on the mature PM1633 platform, it provides balanced performance and reliability for NetApp AFF series storage arrays, suitable for medium scale read intensive workloads.

      Core specifications and features

      Project Specification Description

       NetApp model 108-00468

       Part number X356A-R6

       Disk model PM1633

        Capacity 3.84TB

        Interface Protocol NVMe 1.2

        Appearance specification 2.5 inches U.2 (SFF-8639)

         NAND type 3D TLC NAND

         Durability/Durability 1.0 DWPD (Daily Full Disk Write Count during 5-year Warranty)

         Total 7.0 PBW (lifetime write capacity)

         Performance sequential reading: up to 3200 MB/s

         Sequential writing: up to 1100 MB/s

         Random read: 480000 IOPS (4K)

         Random Write: 32000 IOPS (4K)

        Power consumption activity power consumption 2W

        Idle power consumption5W

        Reliability index MTBF: 2.5 million hours

        UBER：1e

        Key feature - Read optimization design: optimized for read intensive workloads

        NetApp custom firmware: deeply integrated ONTAP system

        Enterprise level reliability: supports end-to-end data protection

        Energy Efficiency Optimization: Excellent Power Consumption per TB Unit

        Technical Features

        Performance characteristics

        Continuous read bandwidth reaches 3.2GB/s, meeting the needs of most enterprise applications

         Random read performance reaches 480K IOPS, suitable for random read workloads

         Optimized writing algorithm to ensure stable performance

         reliability characteristics

         Support Power Loss Protection

         Advanced Wear Balance Algorithm

        Real time bad block management and remapping

        management function

        Support NVMe Management Interface

         Integrated NetApp AutoSupport functionality

         Real time health status monitoring

         system compatibility

         Supports NetApp systems:

          AFF A Series Full Flash Array

          FAS series hybrid storage array (equipped with NVMe tray)

          EF series full flash array

          Requirement for ONTAP version:

          ONTAP 9.4 and above versions

          Recommend using ONTAP 9.7 or later versions

         Management tools:

         NetApp System Manager

         Active IQ Unified Manager

         ONTAPI Command Line Interface

         Applicable scenarios

         Enterprise virtualization environment

         VMware HANA virtualization platform

         Microsoft Hyper-V Environment

         VDI Virtual Desktop Infrastructure

        Database application

        Read only database copy

        Report and Data Warehouse Query

        Develop and test database environment

        File Service

        Enterprise file sharing storage

       Active Archive Storage

      Content distribution and storage

       Cloud infrastructure

       Private cloud storage resource pool

       Hybrid cloud storage layering

       Backup and restore storage
