X4011A 3.8TB NVMe SSD 108-00889+E7 OTS2398 DC SN655 X90-4011A in Stock for NETAPP

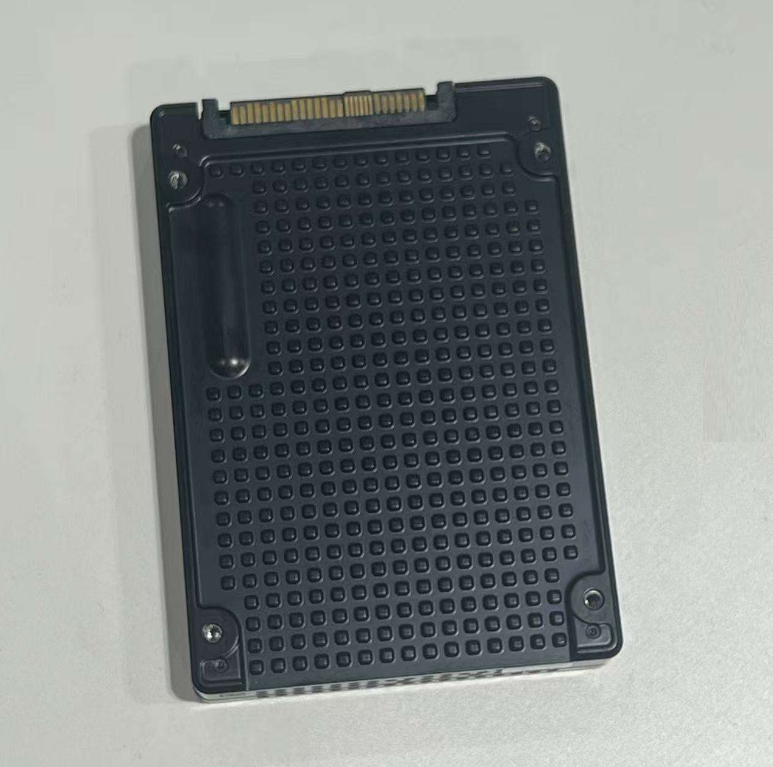

NetApp Enterprise NVMe Solid State Drive -108-00889 (X4011A, PM1733) Product Introduction

Overview

       NetApp 108-00889 (part number X4011A, disk body model PM1733) is a high-performance NVMe solid-state drive launched by NetApp, utilizing advanced PCIe 4.0 technology. This model offers a capacity of 3.84TB and adopts a 2.5-inch U.2 interface, designed specifically for NetApp AFF all flash arrays, providing excellent performance and reliability for enterprise level critical workloads.

        Core specifications and features

        Project Specification Description

        NetApp model 108-00889

        Part number X4011A

        Disk model PM1733

        Capacity 3.84TB

        Interface protocol NVMe 2.0, PCIe 4.0 x4

       Appearance specification 2.5 inches U.2 (SFF-8639)

       NAND type 96 layer 3D TLC NAND

       Durability/Durability 10 DWPD (daily full disk write count during 5-year warranty period)

       Total 70.1 PBW (lifetime write)

       Performance sequential reading: up to 7000 MB/s

       Sequential writing: up to 4300 MB/s

       Random read: 1550000 IOPS (4K)

       Random Write: 420000 IOPS (4K)

       Delay reading delay 85

       Write latency 12

       Power consumption activity power consumption 19W

       Idle power consumption 5.5W

      Reliability index MTBF: 2.5 million hours

     UBER： 1e

     Technical Features

1. Performance characteristics

       PCIe 4.0 interface provides twice the bandwidth of PCIe 3.0

      Supports NVMe Sets and ZNS partition namespaces

      Intelligent read-write cache management

      End to end data protection

2. Reliability characteristics

      Enhanced Power Failure Protection (PLP+)

      Full path data integrity verification

      Real time NAND health monitoring

      Hot swappable and online replacement support

3. Management function

      NVMe MI 1.1 Management Interface

      Enhanced S.M.A.R.T. monitoring

       NetApp Active IQ Integration

       Remote diagnosis and management support

       system compatibility

      Support platform:

      AFF A Series Full Flash Array

      AFF C Series Full Flash Array

      FAS9500 series hybrid array

      System requirements:

      ONTAP 9.11.1 or higher version

      Recommended ONTAP 9.12.1+

      Management tools:

      NetApp System Manager 9.11+

      Active IQ Unified Manager

      ONTAPI Command Line Interface

       REST API support

       Applicable scenarios

       1. High performance database

       Oracle Exadata environment

       SAP HANA Platform

       SQL Server Key Business

       2. Virtualization infrastructure

       VMware vSAN hyper converged

       Microsoft Azure Stack

      VDI Virtual Desktop Deployment

       3. Technical application

       Artificial Intelligence Training

       Machine learning reasoning

       Real time data analysis
