Enterprise grade solid-state drive PM1733 1.92T U.2 NVMe PCIe 4.0 Ultra Micro X4010A high-speed read and write AI database

NETAPP Enterprise NVMe Solid State Drive - Model 108-00856 (X4010A-PM1733) Product Details

1、 Product Overview

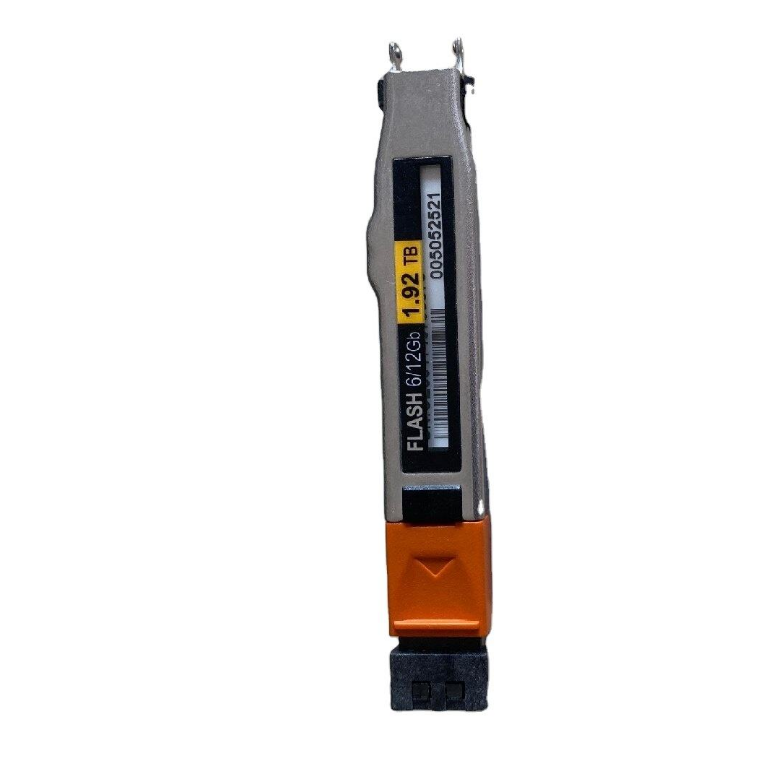

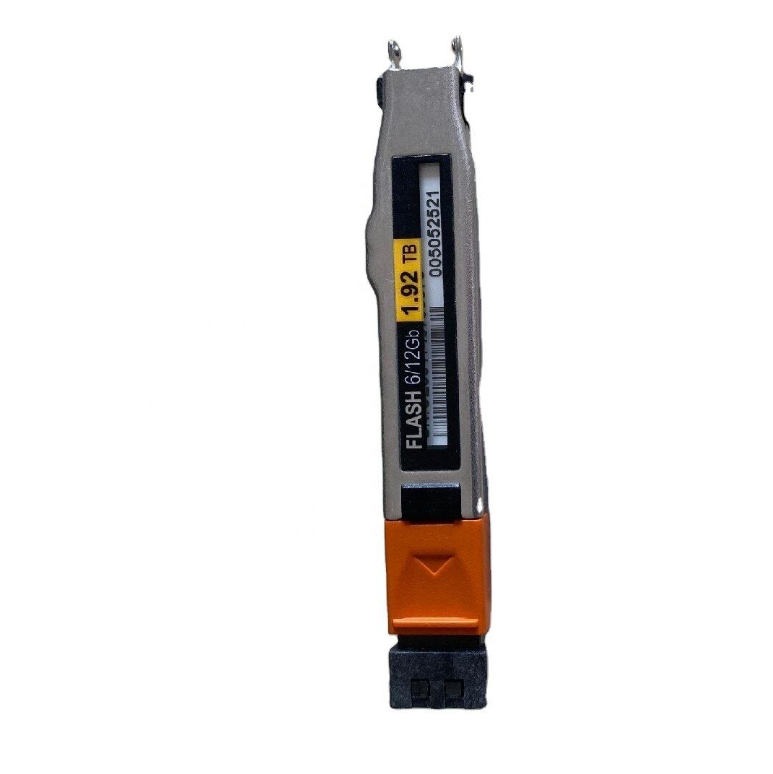

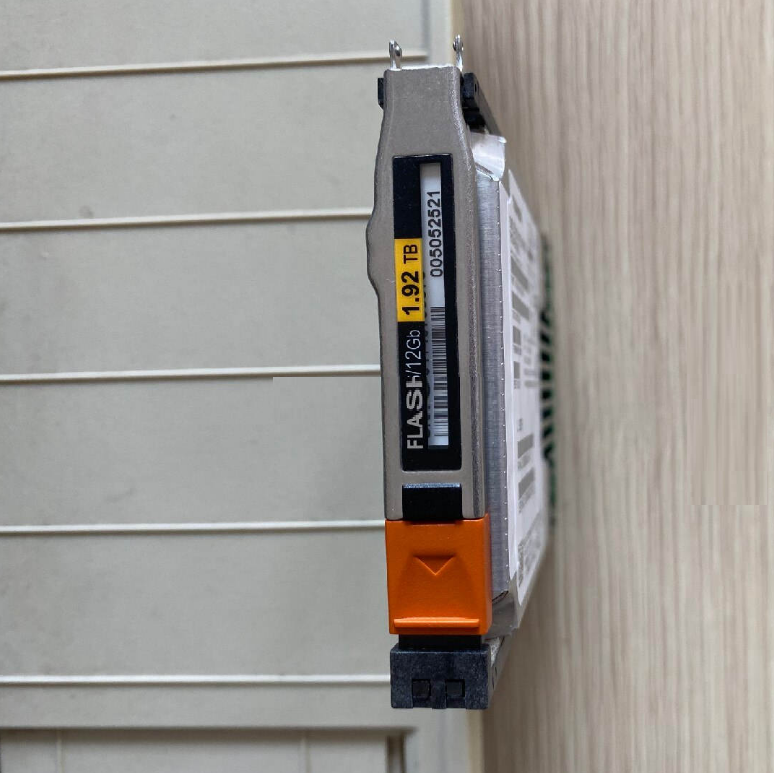

        NETAPP 108-00856 (product model X4010A, disk body model PM1733) is a high-performance enterprise grade NVMe solid-state drive with a capacity of 1.92TB. The product uses advanced 3D TLC NAND flash technology and is designed specifically for read intensive workloads, achieving an excellent balance between performance, durability, and cost-effectiveness.

2、 Technical specifications

        Detailed specifications of parameter categories

        Basic Parameters

        Manufacturer model X4010A

        NETAPP part number 108-00856

        Disk model PM1733

        Interface type NVMe over PCIe

        Appearance specification 2.5 inches U.2

        performance parameters

        Nominal capacity 1.92TB

        Available capacity 1.75TB (based on RAID configuration)

       Sequential read speed up to 3400 MB/s

       Sequential write speed up to 1500 MB/s

       4K random read up to 450000 IOPS

      4K random write up to 75000 IOPS

      Delay read<85 μ s, write<18 μ s

      Reliability parameters

      Durability level 3 DWPD

       Life indicator 10.5 PBW (lifetime write capacity)

       MTBF 2, 000000 hours

       Warranty period of 5 years or achieving durability indicators

3、 Core technical features

1. Optimized read performance

       Adopting PCIe 3.0/4.0 x4 interface

       Specially optimized for read operations

        Design of Low Power High Performance Controller

        Supports NVMe 1.3/1.4 standards

2. Enterprise level reliability

        Typical power consumption: 8-10W

        Maximum power consumption: 14W

         Integrated power-off protection function

         End to end data path protection

3. Intelligent management function

         Support hot plug operation

         Online firmware upgrade capability

         Advanced S.M.A.R.T. monitoring

         Temperature adaptive performance adjustment

4、 Compatibility information

          Supported system models:

         AFF A220, A250, A400 series

         FAS500f, FAS8300 series

         Supports ONTAP 9.5 and higher versions

          AFF A series controller

         Supports standard 2.5-inch disk slots

5、 Application scenarios

1. Read intensive applications

         Virtual Desktop Infrastructure (VDI)

        Content Delivery Network (CDN)

         Data analysis and report query

         Web server storage

2. Enterprise level applications

         Database Read Copy

        Application server storage

         file share service

         Email server storage

3. Cloud service scenarios

         Virtual machine image storage

        Container persistent storage

        Backup and archive storage

         Development and testing environment
