Enterprise grade solid-state drive PM1723B 1.92T U.2 NVMe PCIe 3.0 Ultra Micro X4010A High Durability Database Disk

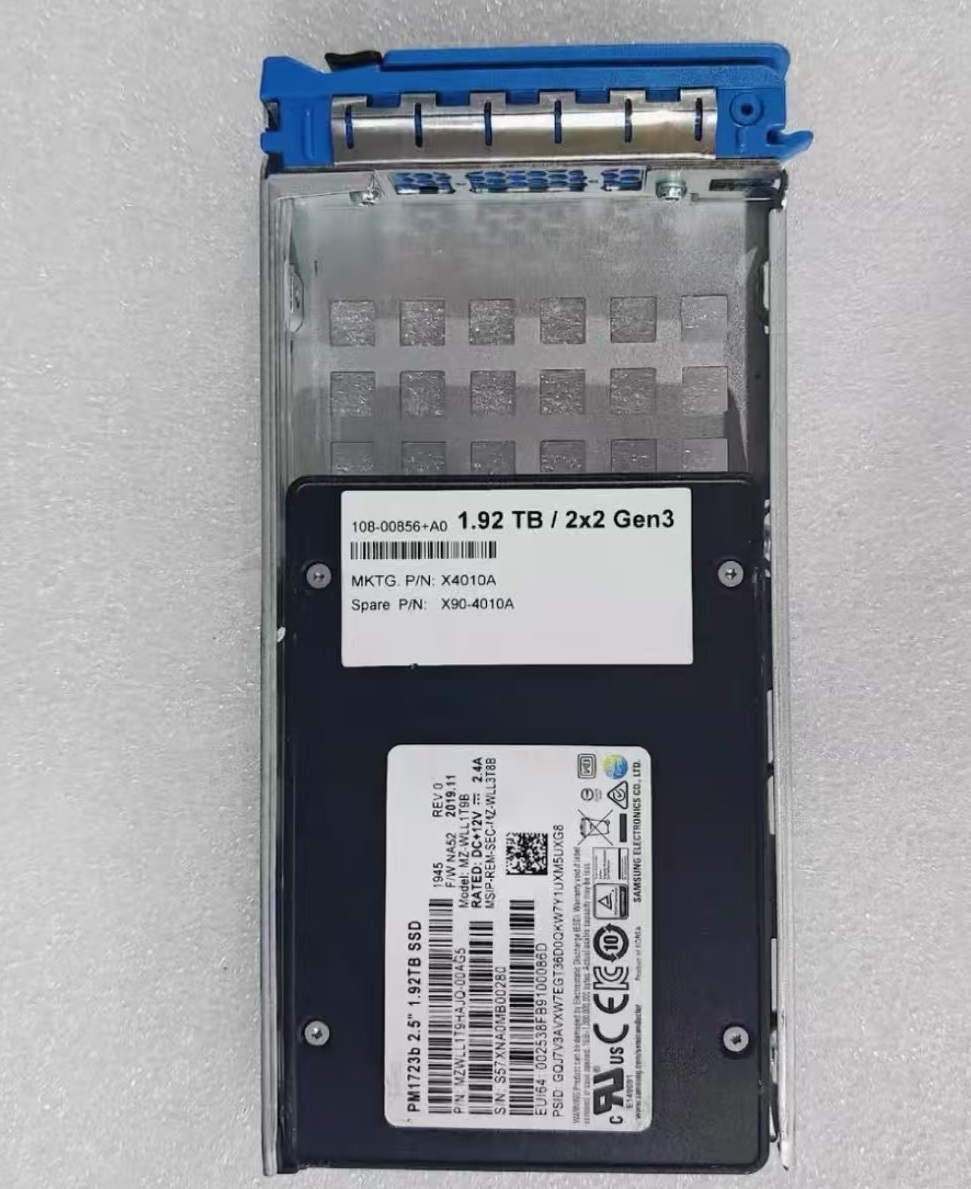

NETAPP Enterprise NVMe Solid State Drive - Model 108-00856 (X4010A-PM1723B) Product Details

1、 Product Overview

        NETAPP 108-00856 (product model X4010A, disk body model PM1723B) is a high-performance enterprise level NVMe solid-state drive with a capacity of 1.92TB. The product uses advanced 3D TLC NAND flash technology and NVMe protocol, optimized for read intensive workloads, achieving a perfect balance between performance, durability, and cost-effectiveness, suitable for various enterprise level application  scenarios.

2、 Detailed technical specifications

        Parameter Category Detailed Specification Remarks

         Basic Information

         Manufacturer model X4010A

         NETAPP part number 108-00856 unique identification code

         Disk model PM1723B

        NVMe over PCIe interface protocol supports the latest standards

        Appearance specification 2.5 inches U.2 (SFF-8639) industry standard

        Capacity information

        Nominal capacity 1.92TB original capacity

        Available capacity ≈ 1.75TB considering RAID and system overhead

        performance parameters

        Sequential read speed up to 3200 MB/s, sustained performance

         Sequential write speed up to 1200 MB/s, sustained performance

         4K random read up to 500000 IOPS queue depth 256

        4K random write up to 80000 IOPS queue depth 256

        Read/write latency reading<90  s, write<20  typical value

        Reliability parameters

         Durability level 3 DWPD daily full disk write count

         Service life 10.5 PBW lifetime write capacity

         Mean time between failures 2000000 hours

         The warranty policy is 5 years or the durability index is reached first

3、 Core Technologies and Characteristics

1. High performance architecture design

         Adopting PCIe 3.0/4.0 x4 interface, providing high bandwidth data transmission

        Support multi queue access and optimize concurrent processing capabilities

        Intelligent pre reading algorithm improves sequential reading performance

         Low power controller design, balancing performance and energy efficiency

2. Enterprise level reliability assurance

          Power outage protection mechanism: integrated supercapacitor to ensure data security in case of sudden power outage

          End to end data protection: complete data verification from host to flash memory

         Advanced ECC Error Correction: Powerful Error Detection and Correction Capability

          Wear leveling algorithm: extending the lifespan of flash memory

3. Intelligent management function

         Hot swappable support: supports online replacement to ensure business continuity

        S. M.A.R.T. Monitoring: Real time monitoring of hard drive health status

        Temperature management: dynamic temperature control adjustment to prevent overheating

        Firmware online upgrade: firmware can be updated without shutting down

4、 Compatibility information

        Supported NetApp systems:

        AFF A series full flash array: A220, A250, A400, etc

        FAS series hybrid storage system

        Supports ONTAP 9.5 and higher operating systems

        Physical compatibility:

        Standard 2.5-inch disc position

        DS224C, DS460C and other disk racks

        Support hot swappable installation

5、 Recommended application scenarios

1. Virtualization environment

        VMware HANA virtualization platform

       Microsoft Hyper-V Environment

       VDI (Virtual Desktop Infrastructure)

2. Enterprise applications

        Database read replica (Oracle, SQL Server)

        File Sharing Server

        Email server storage

3. Cloud and hosting services

         Virtual machine image storage

         Container persistent storage

          Backup and archive storage

4. Read intensive workloads

         Content Delivery Network (CDN)

         Streaming media services

         Big data analysis and query
