118033280 3.84TB NVMe PowerMAX 2000 / 8000 Vt 005052696 MZWLL3T8HAJQ-00AC3 PM1723Bb

EMC Enterprise NVMe Solid State Drive - Model 118033280 Product Detailed Description

I. Product Overview

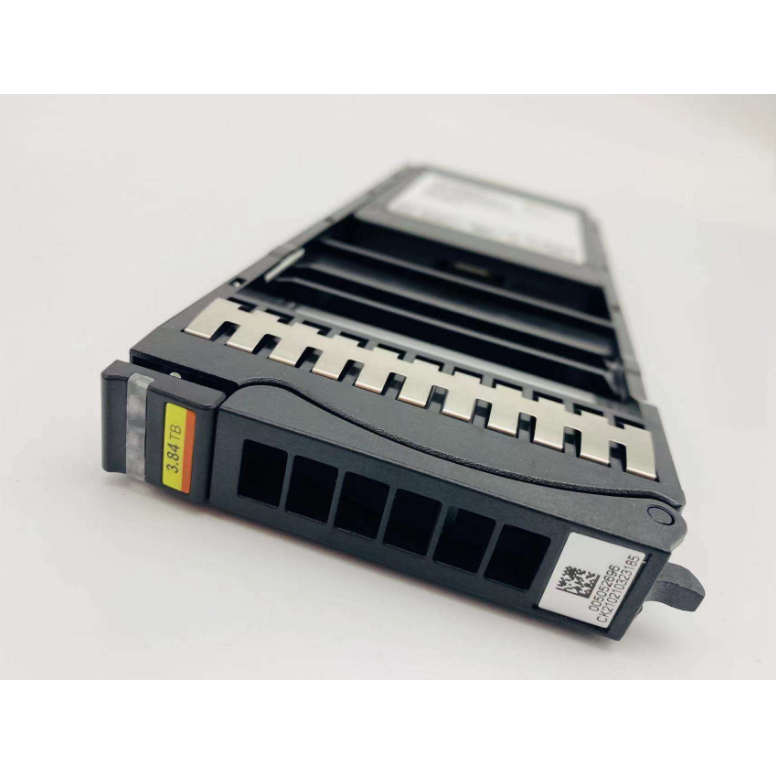

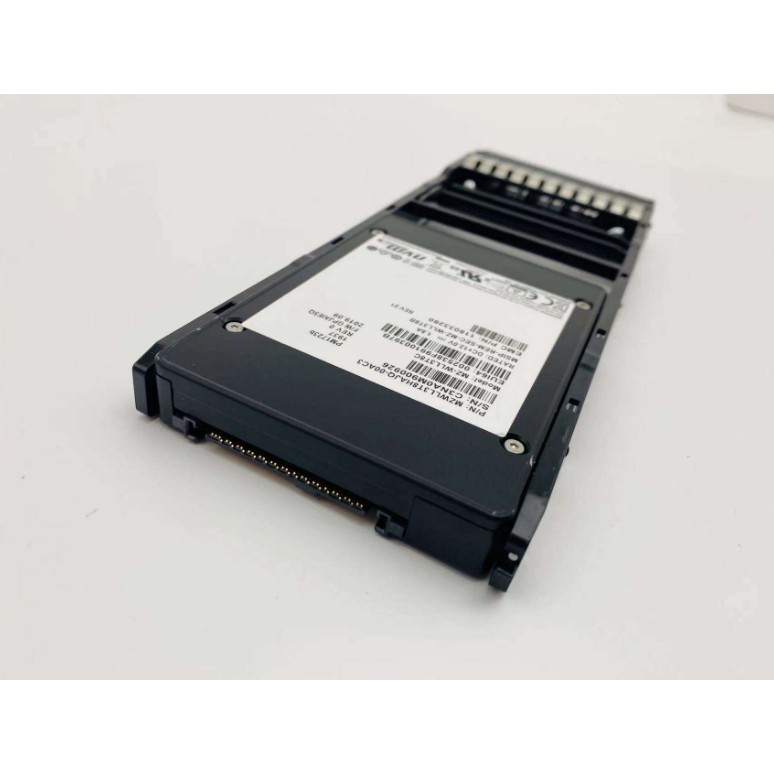

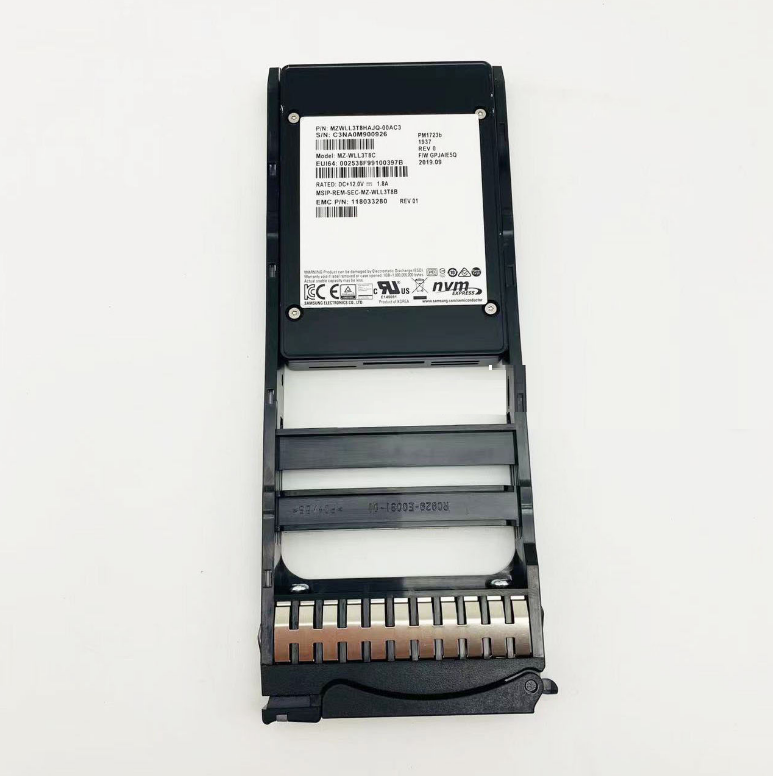

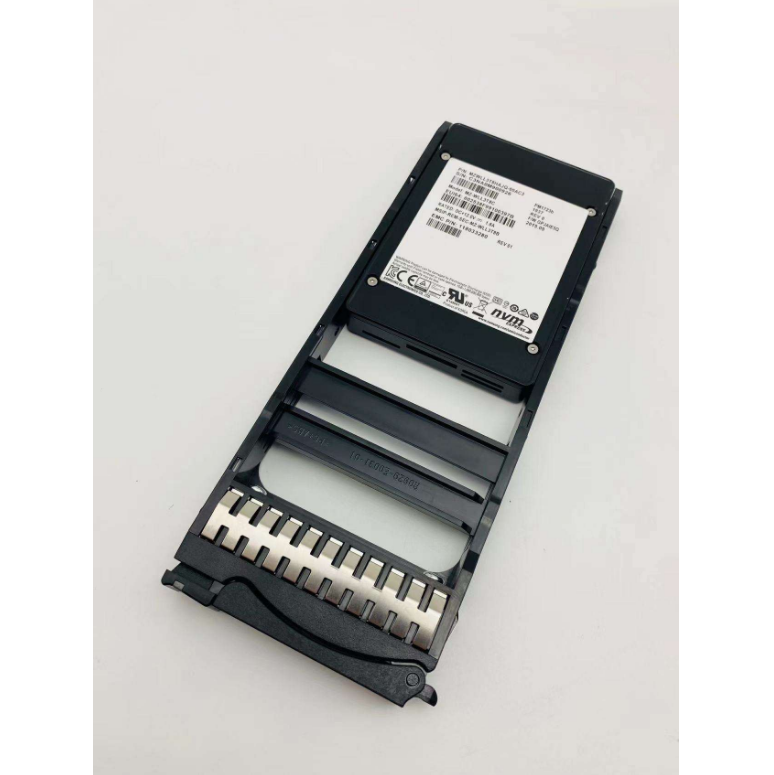

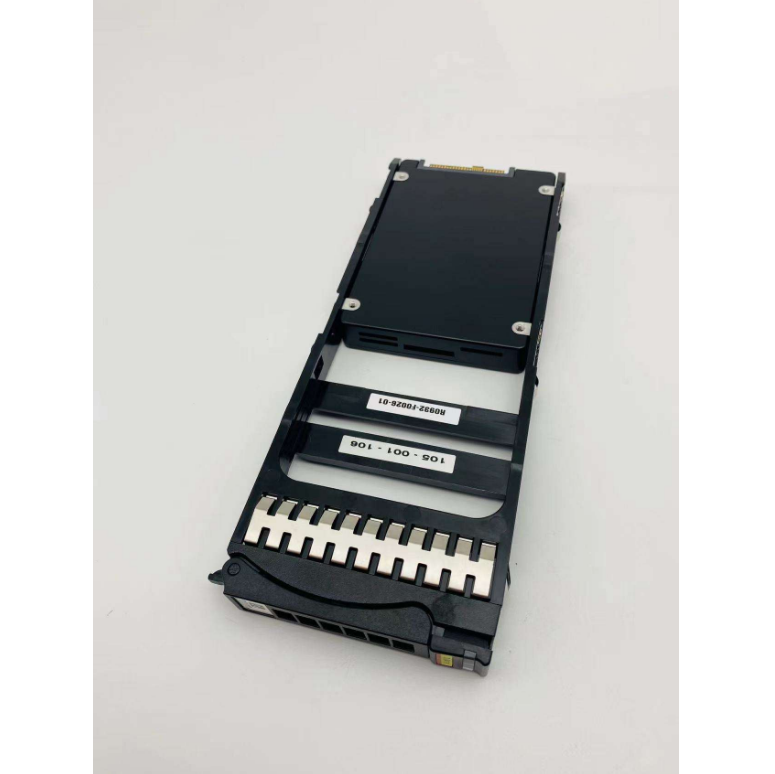

      The EMC 118033280 (Part No.: 005053079/005053504, Drive Model PM1723B) is a high-performance enterprise-grade NVMe SSD with a capacity of 3.84TB. This product utilizes advanced 3D TLC NAND flash technology and a PCIe 4.0 interface, specifically designed for modern enterprise mission-critical workloads, achieving an optimal balance between performance, capacity, and cost-effectiveness.

II. Detailed Technical Specifications

        Parameter Category Detail Specifications

        Basic Information

        EMC Part Number 118033280

       Replacement part number 005053079 / 005053504

       Platter Model: PM1723B

       Interface Protocol: NVMe over PCIe 4.0

      Form Factor: 2.5-inch U.2

      Capacity information

      Nominal Capacity: 3.84TB

       Available capacity ≈3.5TB

      Performance parameters

      Sequential read speed 6,800 MB/s

      Sequential write speed: 4,000 MB/s

      4K Random Read 1,200,000 IOPS

     4K Random Write 280,000 IOPS

     Read and Write Latency

     Read <70μs, Write <12μs

     Reliability parameters

     Durability Rating 5 DWPD

     Service life: 35 PBW

     Mean Time Between Failures: 2,500,000 hours

      Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. High-performance architecture

       PCIe 4.0 x4 interface, offering a rate of 16 GT/s

      Supports all features of the NVMe 1.4 standard

      Optimized Parallel Processing Architecture

       Dynamic Power Management

2. Enterprise-level Reliability

      Full-path power-off protection: Super capacitor protection mechanism

      End-to-end data integrity: Complete CRC checksum protection

      Advanced LDPC Error Correction: Powerful Error Correction Capability

      Intelligent Wear Leveling: Dynamic Block Management Algorithm

3. Intelligent Management Function

      Hot-swapping support: Online maintenance capability

      Enhanced Monitoring: S.M.A.R.T. Attribute Monitoring

      Temperature Management: Dynamic Thermal Throttling

      Remote Management: NVMe-MI Management Interface

4、 Compatibility information

      Supported Dell EMC Systems:

      PowerMax Series: PowerMax 2000/8000

      Unity XT series

      PowerEdge MX Series

      VxRail hyper fusion system

      Operating system support:

       Windows Server 2019/2022

       Red Hat Enterprise Linux 7/8/9

       VMware ESXi 6.7/7.0/8.0

       SUSE Linux Enterprise Server 15

5、 Recommended application scenarios

1. Key applications for enterprises

          Large scale database systems (Oracle, SQL Server)

          SAP HANA in memory computing

          Enterprise Resource Planning System

2. Virtualization environment

          Large scale VDI deployment

         Server virtualization platform

         Containerized application storage

3. Cloud data center

         Software defined storage

         Hybrid cloud storage solution

        Cloud native application storage

4. Data analysis

        Real time data processing

       Business Intelligence Analysis

       AI/machine learning workloads

6、 Summary of Product Advantages

        performance advantage

        Excellent read and write throughput

        Ultra low latency response

        Stable service quality

        Capacity advantage

        Optimized storage density

        Efficient capacity utilization

        Good scalability

        management advantage

        Deep integration with Dell EMC management tools

        Simplified operation and maintenance management

        Intelligent monitoring and warning

7、 Environmental specifications

        Parameter specifications

        Working temperature: 0 ° C to 55 ° C

       Storage temperature -40 ° C to 70 ° C

        Working humidity 8% to 90% non condensing

        Working altitude of 3000 meters

        Typical power consumption 10-12W

        Maximum power consumption 18W

         Anti vibration 5.0 Grms (5-800 Hz)
