 EMC Enterprise NVMe Solid State Drive - Model 118000630 Product Details

1、 Product Overview

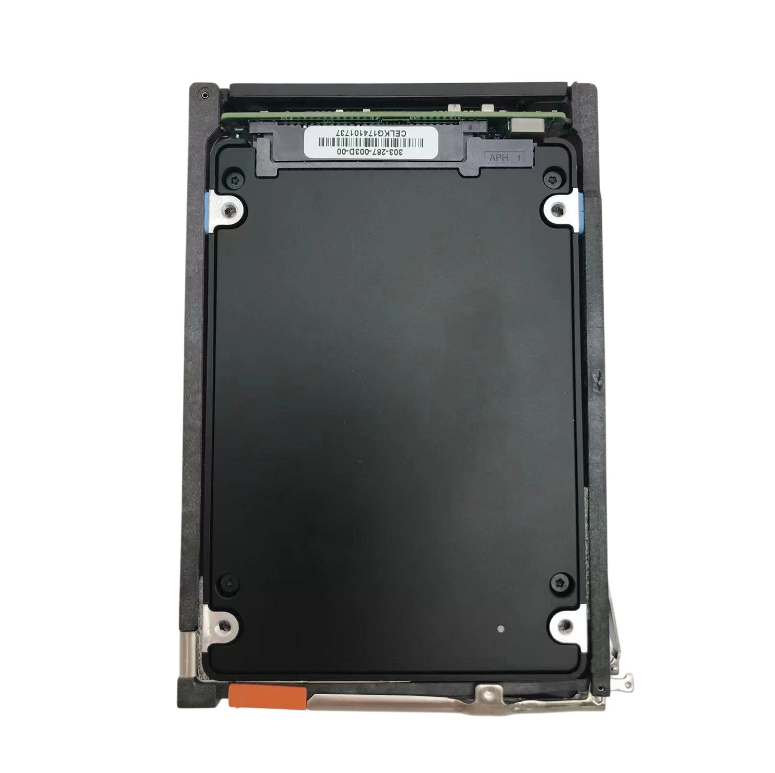

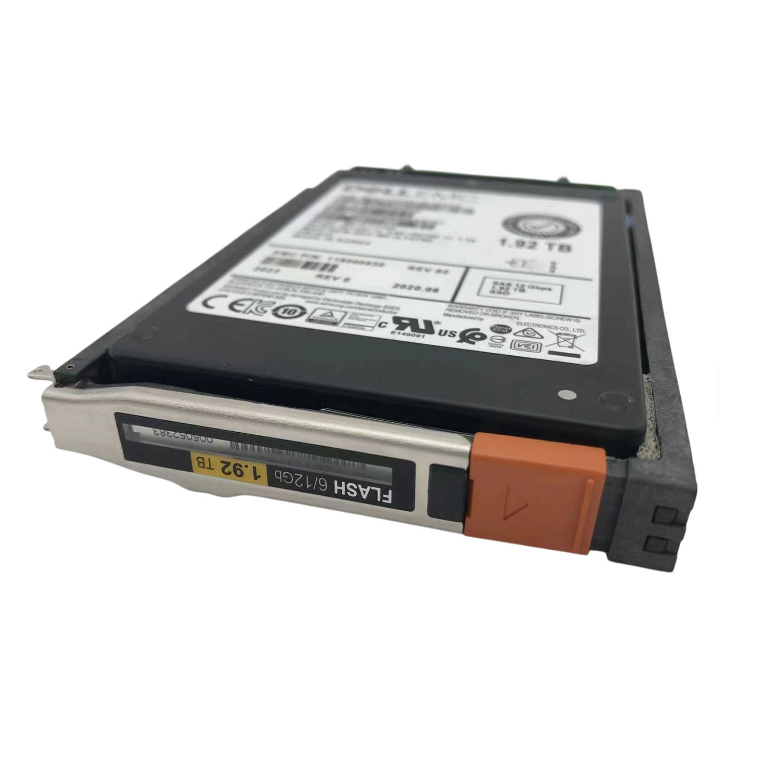

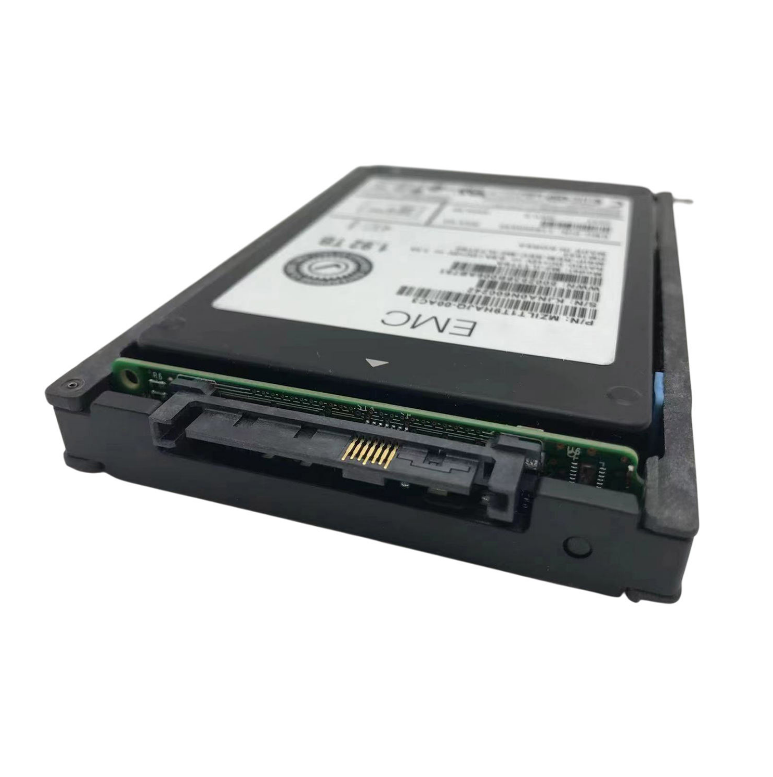

        EMC 118000630 (disk body model PM1643) is a high-performance enterprise grade NVMe solid-state drive with a capacity of 1.92TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe interface and NVMe protocol, to provide reliable performance for enterprise workloads, making it an ideal choice for building modern storage infrastructure.

2、 Detailed technical specifications

       Detailed specifications of parameter categories

       Basic Information

      EMC part number 118000630

      Disk model PM1643

      Flash Memory Type: 3D TLC NAND

       Interface Protocol NVMe over PCIe 3.0

      Appearance specification 2.5 inches U.2

      Capacity information

       Nominal capacity 1.92TB

       User available capacity ≈ 1.75TB

        performance parameters

       Sequential read speed 3200 MB/s

       Sequential write speed 1800 MB/s

       4K random read 600000 IOPS

       4K random write 150000 IOPS

       Read/write delay: Read<90 μ s, write<20 μ s

       Reliability parameters

       Durability level 3 DWPD

       Service life 10.5 PBW

      Mean time between failures 2000000 hours

      Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. High performance architecture

       PCIe 3.0 x4 interface

       NVMe optimized protocol stack

       High performance flash memory controller

       Support multiple namespaces

2. Enterprise level reliability

        Power outage protection mechanism: data integrity guarantee

        End to end data protection: complete verification mechanism

        Advanced Error Correction: LDPC Error Correction Technology

        Intelligent wear balance: extending service life

3. Intelligent management function

         Hot swappable support: online maintenance capability

         Health status monitoring: S.M.A.R.T. attribute

         Temperature Management: Dynamic Temperature Control Adjustment

       Remote Management: Standard Management Interface

4、 Compatibility information

        Supported Dell EMC Systems:

        Unity series storage array

       PowerEdge series servers

       VxRail hyper fusion system

       Specific models of PowerMax systems

       Operating system support:

        VMware HANA 6.7 and above

         Windows Server 2016/2019

         Red Hat Enterprise Linux 7/8

         SUSE Linux Enterprise Server 12/15

5、 Recommended application scenarios

1. General enterprise workloads

         Virtualization platform storage

         Medium sized database applications

         File sharing service

2. Cloud infrastructure

        Virtual machine image storage

        Container persistent storage

        Development and testing environment

3. Commercial applications

        Email server storage

        Web application storage

        Collaborative platform storage

4. Data Protection

        Backup storage acceleration layer

       Disaster recovery storage

       Data hierarchical storage

6、 Summary of Product Advantages

       performance advantage

        Balanced read and write performance

        Stable low latency

         Good IOPS performance

         Reliability advantage

         Enterprise level durability design

        Comprehensive data protection

         Long life cycle

         cost advantage

        Optimized total cost of ownership

        High energy efficiency design

        Low maintenance cost

7、 Environmental specifications

       Parameter specifications

       Working temperature: 0 ° C to 55 ° C

       Storage temperature -40 ° C to 70 ° C

       Working humidity 8% to 90% non condensing

       Typical power consumption of 8-10W

        Maximum power consumption 15W

        Anti vibration meets enterprise level standards
