EMC Enterprise NVMe Solid State Drive - Model 118000835 Product Details

1、 Product Overview

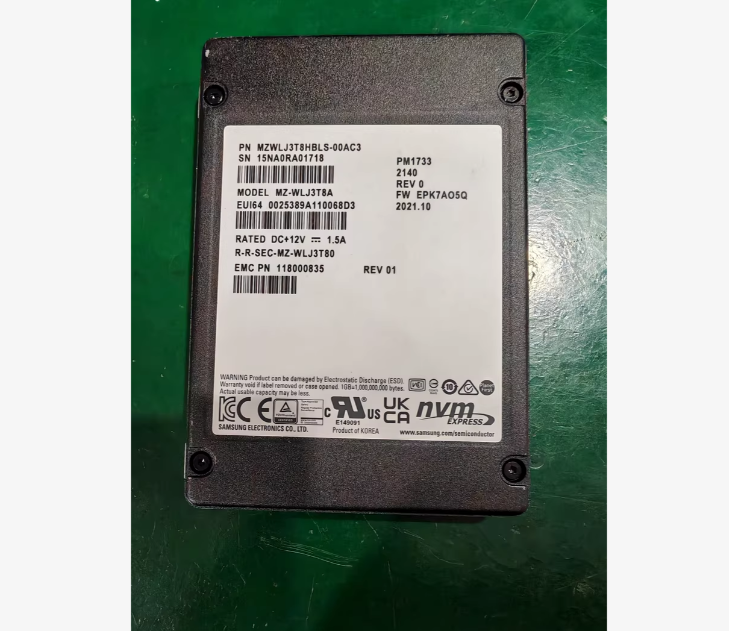

        EMC 118000835 (disk body model PM1733) is a high-performance enterprise grade NVMe solid-state drive with a capacity of 3.84TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe 4.0 interface and NVMe protocol, designed specifically for the high demand workloads of modern data centers, achieving excellent balance in performance, capacity, and reliability.

2、 Detailed technical specifications

        Detailed specifications of parameter categories

       Basic Information

        EMC part number 118000835

        Disk model PM1733

        Flash technology 3D TLC NAND

        Interface protocol NVMe 1.4 over PCIe 4.0

        Appearance specification 2.5 inches U.2 (15mm thickness)

        Capacity information

        Nominal capacity 3.84TB

        User available capacity ≈ 3.5TB

        performance parameters

       Sequential read speed 7000 MB/s

       Sequential write speed 4200 MB/s

       4K random read 1400000 IOPS

       4K random write 300000 IOPS

       Read/write delay: Read<65 μ s, write<10 μ s

       Reliability parameters

        Durability level 3 DWPD

        Service life 21 PBW

        Mean time between failures 2500000 hours

        Annual failure rate 0.35%

       Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. High performance architecture design

       PCIe 4.0 x4 interface, providing a transfer rate of 16 GT/s

       Support multiple namespaces and SRIOV virtualization

       Optimized parallel processing architecture

       Low power and high-performance controller

2. Enterprise level reliability assurance

       Full path power-off protection: enhanced supercapacitor array

       End to end data protection: complete data path protection

       Advanced LDPC Error Correction: Fourth Generation LDPC Error Correction Technology

       Intelligent Health Monitoring: Real time Flash Health Management System

3. Intelligent management function

Hot swappable support: Compliant with NVMe hot swappable standards

Telemetry: Real time performance monitoring and analysis

Intelligent Temperature Control: Multi zone Dynamic Temperature Management

Remote management: NVMe MI 1.2 management interface

4、 Compatibility information

       Supported Dell EMC Systems:

       PowerMax 2500/8500 Full Flash Array

       Unity XT 380F/480F/680F/880F

       PowerEdge MX series modular servers

       VxRail P-series hyper fusion system

       Software environment support:

       VMware HANA 7.0 U3 and above

       Windows Server 2022

       Red Hat Enterprise Linux 8.5 and above

       SUSE Linux Enterprise Server 15 SP3

5、 Recommended application scenarios

1. Key business of the enterprise

       Large scale database system (Oracle Exadata)

      SAP HANA In Memory Computing Platform

      Enterprise Resource Planning System

2. Virtualization and Cloud Computing

      Enterprise level virtualization platform

      Hyper converged infrastructure

      Hybrid cloud storage solution

3. Data analysis and AI

       Real time data analysis platform

       Artificial Intelligence/Machine Learning Training

       Big data processing cluster

4. High performance computing

        Scientific research computation

        Financial risk modeling

        Media content creation

6、 Summary of Product Advantages

        performance advantage

         PCIe 4.0 Ultimate Performance Performance

         Ultra low latency response

         Excellent random read and write performance

         Capacity advantage

         High storage density design

         Optimized spatial efficiency

        Good scalability

        Reliability advantage

        Enterprise level durability design

         A comprehensive data protection mechanism

         Long life cycle guarantee

7、 Environmental specifications

        Parameter specifications

        Working temperature: 0 ° C to 55 ° C

        Storage temperature -40 ° C to 85 ° C

         Working humidity 5% to 95% non condensing

         Working altitude 3050 meters

         Typical power consumption 12-14W

         Maximum power consumption 25W

         Impact resistance 1000G (0.5ms)
