Dell Enterprise Hard Disk 7.68T 005053080 005053081 005052923 005052924 005053706 for PowerStore 500T 1000T 5000T

EMC Enterprise NVMe Solid State Drive - Model 118000742 Product Details

1、 Product Overview

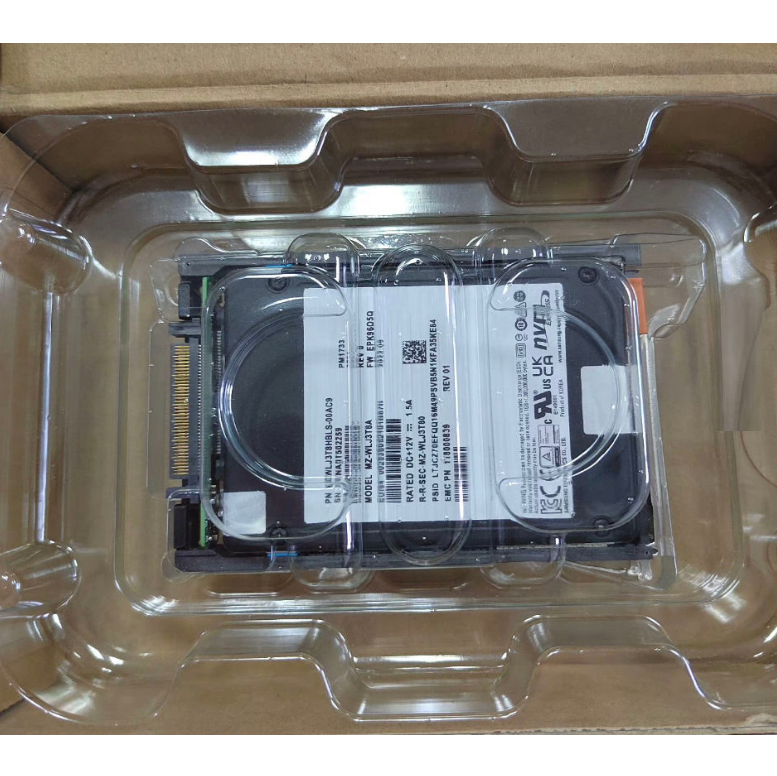

        EMC 118000742 (part number: 005053081, disk body model PM1723B) is a high-capacity enterprise grade NVMe solid-state drive with a capacity of up to 7.68TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe 4.0 interface and NVMe protocol, designed specifically for the ultimate performance requirements of modern data centers, setting new industry standards in storage density, performance, and reliability.

2、 Detailed technical specifications

        Detailed specifications of parameter categories

        Basic Information

        EMC part number 118000742

        Alternative part number 005053081

        Disk model PM1723B

        Flash technology 3D TLC NAND

        Interface protocol NVMe 1.4 over PCIe 4.0

        Appearance specification 2.5 inches U.2 (15mm thickness)

       Capacity information

         Nominal capacity 7.68TB

        User available capacity ≈ 7.0TB

        performance parameters

        Sequential read speed 7100 MB/s

         Sequential write speed 4300 MB/s

          4K random read 1500000 IOPS

          4K random write 320000 IOPS

          Read/write delay: Read<65 μ s, write<9 μ s

          Reliability parameters

          Durability level 3 DWPD

          Service life 84 PBW

          Mean time between failures 2500000 hours

          Annual failure rate 0.35%

          Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. Innovative architecture design

           PCIe 4.0 x4 interface, providing a transfer rate of 16 GT/s

          Support multiple namespaces and SRIOV virtualization

           Optimized parallel processing architecture

           High performance low-power controller

2. Enterprise level reliability engineering

           Enhanced power-off protection: multi-layer supercapacitor array

           End to end data protection: complete data path protection

            Advanced LDPC Error Correction: Fourth Generation LDPC Error Correction Technology

            Intelligent Health Monitoring: Real time Flash Health Management System

3. Intelligent management function

           Hot swappable support: Compliant with NVMe hot swappable standards

          Telemetry: Real time performance monitoring and analysis

           Intelligent Temperature Control: Multi zone Dynamic Temperature Management

Remote management: NVMe MI 1.2 management interface

4、 Compatibility information

           Supported Dell EMC Systems:

          PowerMax 2500/8500 Full Flash Array

          Unity XT 680F/880F hybrid storage

          PowerEdge MX series modular servers

          VxRail P-series hyper fusion system

          Software environment support:

          VMware HANA 7.0 U3 and above

          Windows Server 2022

          Red Hat Enterprise Linux 8.5 and above

          SUSE Linux Enterprise Server 15 SP3

5、 Recommended application scenarios

1. Ultra large scale data center

          Hyper converged infrastructure

         Software defined storage platform

         Cloud service provider infrastructure

2. Key business of the enterprise

         Ultra large database system

         Enterprise level data warehouse

         Key business application storage

3. Artificial Intelligence and Big Data

         AI training platform storage

         Machine learning workloads

         Big data analysis platform

4. High performance computing

        Scientific research computation

         Financial modeling analysis

        4K/8K video processing

6、 Summary of Product Advantages

         Capacity advantage

         Industry leading storage density

         Optimized spatial efficiency

        Significantly reduce overall cost of ownership

        performance advantage

        PCIe 4.0 Ultimate Performance

        Ultra low latency response

         Excellent throughput capability

         Reliability advantage

        Enterprise level durability design

        A comprehensive data protection mechanism

        Predictive maintenance capability

7、 Environmental specifications

        Parameter specifications

        Working temperature: 0 ° C to 55 ° C

        Storage temperature -40 ° C to 85 ° C

        Working humidity 5% to 95% non condensing

          Working altitude 3050 meters

         Typical power consumption 14-16W

         Maximum power consumption 26W

          Impact resistance 1000G (0.5ms)
