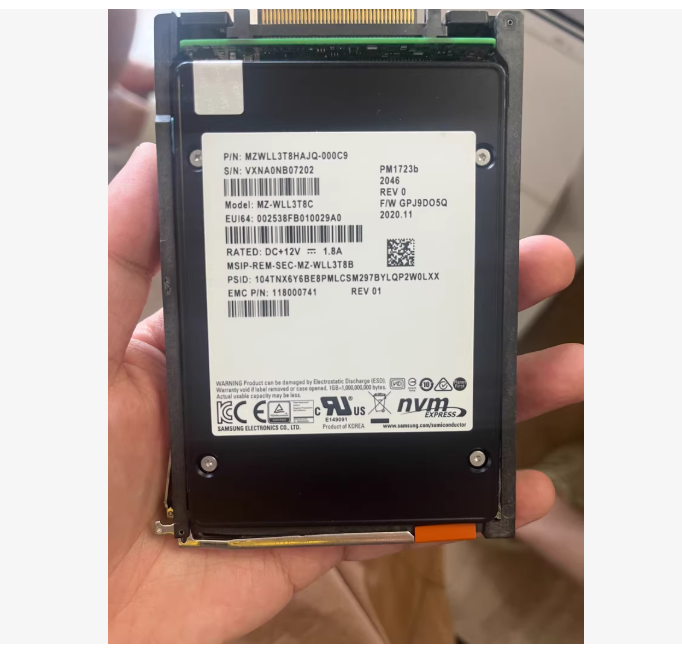

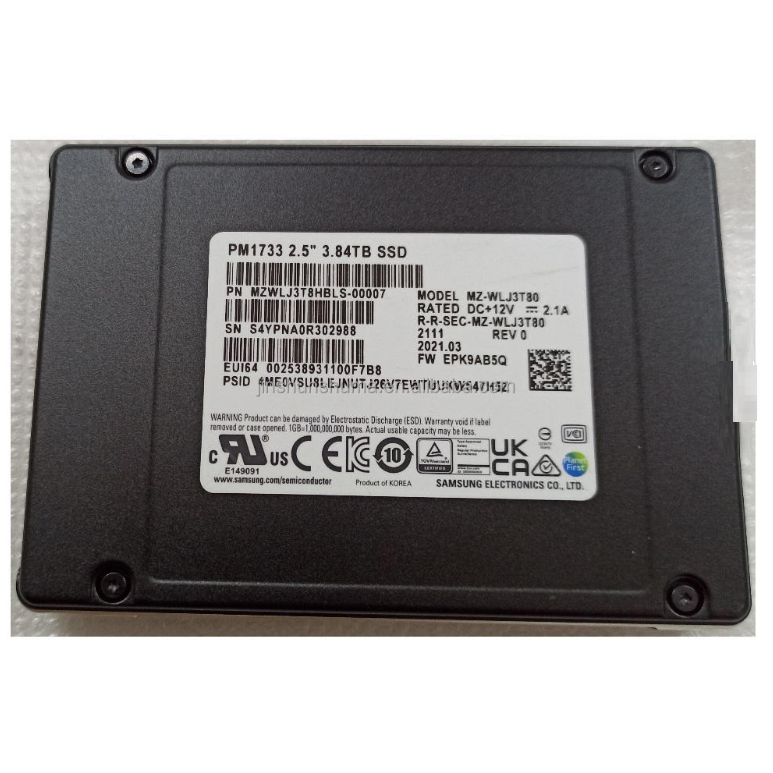

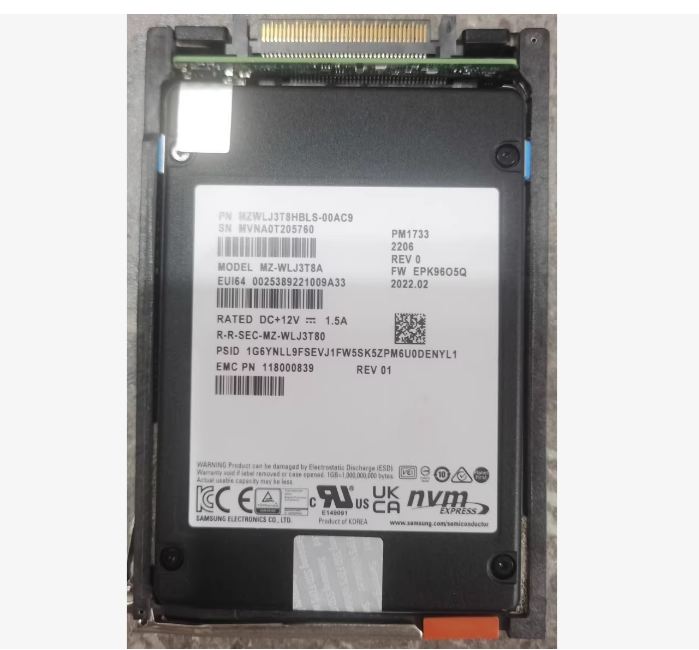

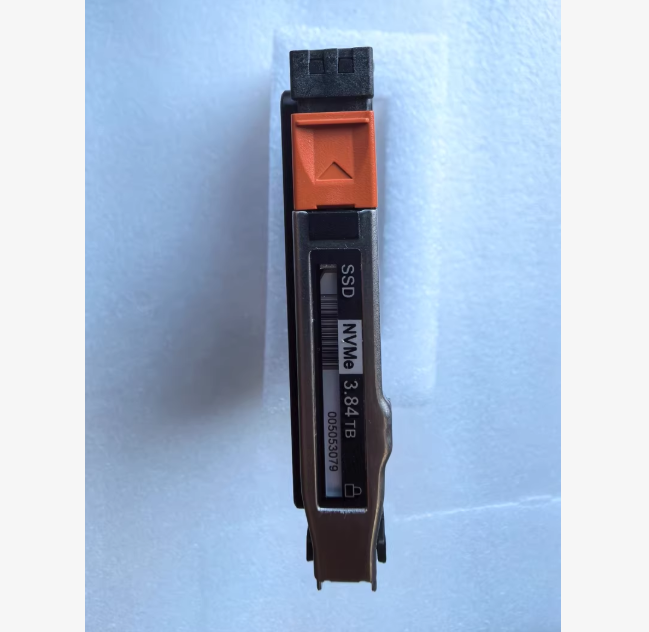

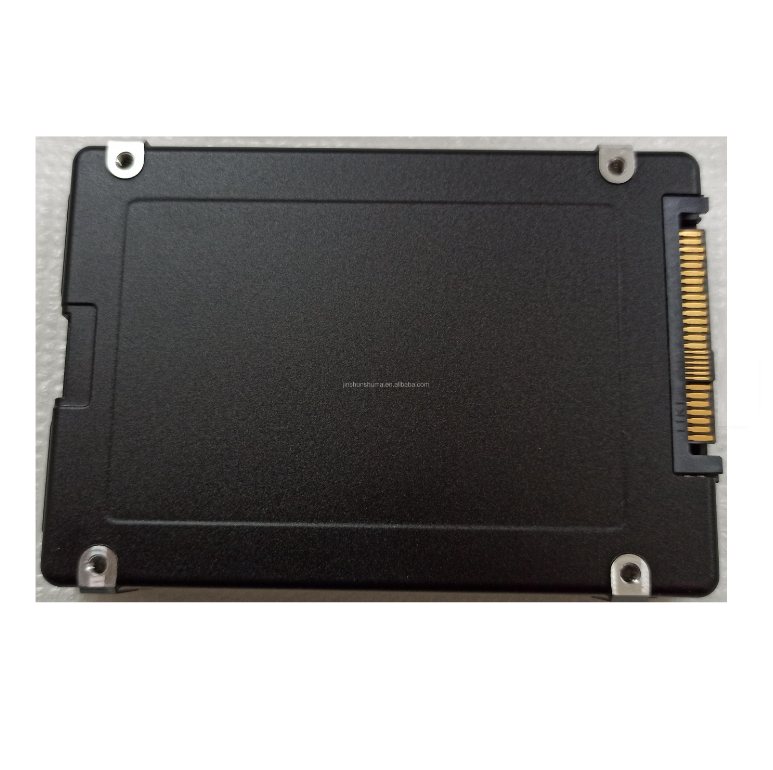

005053704 3.84TB NVMe 2.5" SSD Server Series Solid State Drives Disk 118000839 MZWLJ3T8HBLS-00AC9

EMC Enterprise NVMe Solid State Drive - Model 118000740 Product Detailed Description

1. Product Overview

          The EMC 118000740 (disk model PM1723B) is a high-performance enterprise-grade NVMe SSD with a capacity of 1.92TB. This product utilizes advanced 3D TLC NAND flash technology, based on the PCIe 4.0 interface and NVMe protocol, specifically optimized for enterprise hybrid workloads, achieving a perfect balance between performance, endurance, and cost-effectiveness.

II. Detailed Technical Specifications

         Parameter Category Detail Specifications

         Basic Information

         EMC Component Number: 118000740

         Platter Model: PM1723B

         Flash memory type: 3D TLC NAND

         Interface Protocol: NVMe 1.4 over PCIe 4.0

         Form factor: 2.5-inch U.2 (7mm thickness)

         Capacity information

         Nominal Capacity: 1.92TB

         User Available Capacity ≈1.75TB

         Performance parameters

         Sequential read speed: 6,800 MB/s

         Sequential write speed: 3,500 MB/s

        4K Random Read  950,000 IOPS

        4K Random Write 220,000 IOPS

         Read and Write Latency: Read <70μs, Write <12μs

        Reliability parameters

        Durability Rating: 3 DWPD

        Service life: 10.5 PBW

        Mean Time Between Failures: 2,500,000 hours

         Annual failure rate 0.35%

        Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. Innovative Architecture Design

        PCIe 4.0 x4 interface, offering a transfer rate of 16 GT/s

        Supports multiple namespaces and SR-IOV

        Optimized Parallel Processing Architecture

         Low-Power High-Performance Controller

2. Enterprise-Level Reliability Engineering

         Full Path Power Off Protection: Enhanced Super Capacitor

         End-to-end data protection: complete data integrity verification

         Advanced LDPC Error Correction: Fourth-Generation LDPC Error Correction

         Smart Health Monitoring: Real-time Flash Memory Health Management

3. Intelligent Management Function

          Hot-swapping support: Compliant with the NVMe hot-swapping standard

         Telemetry: Real-time Performance Monitoring

        Temperature Intelligent Control: Multi-zone Temperature Sensors

         Remote Management: NVMe-MI 1.1 Management Interface

4、 Compatibility information

         Supported Dell EMC Systems:

         PowerMax 2500/8500 Full Flash Array

         Unity XT 380F/480F/680F/880F

         PowerEdge MX740c/MX840c

         VxRail P Series/V Series

        Software environment support:

        VMware HANA 7.0 U2 and above

        Windows Server 2022

        Red Hat Enterprise Linux 8.4 and above

        SUSE Linux Enterprise Server 15 SP3

5、 Recommended application scenarios

1. Key business of the enterprise

         Medium sized database systems (Oracle, MySQL)

        Virtualization platform storage

         Enterprise Application Server

2. Cloud computing environment

         Private cloud storage infrastructure

          Hybrid cloud storage solution

          Cloud native application storage

3. Data analysis

          Real time data processing

          Business Intelligence Analysis

          Machine learning inference workload

4. Virtualization deployment

          Virtual Desktop Infrastructure (VDI)

         Server virtualization

         Container platform storage
