Server SSD 3.84T U.2 NVMe PCIe Enterprise Hard Drive 3.84TB 118000588-04 005053504 Unplugged Mass Storage

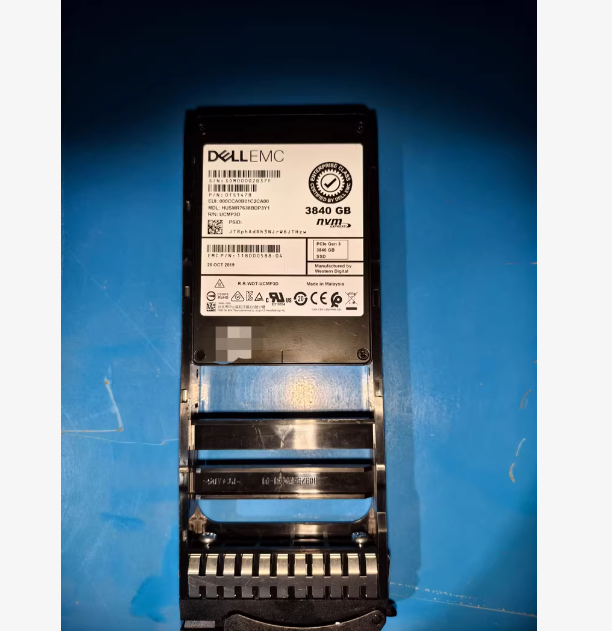

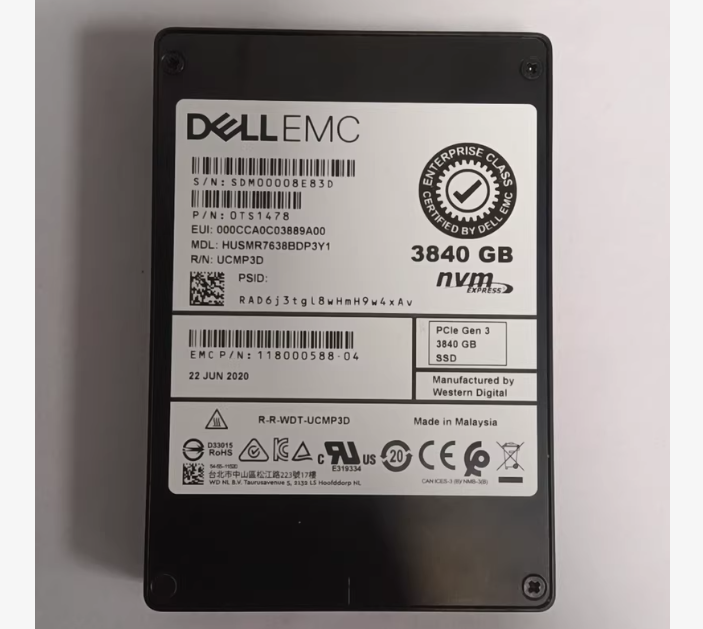

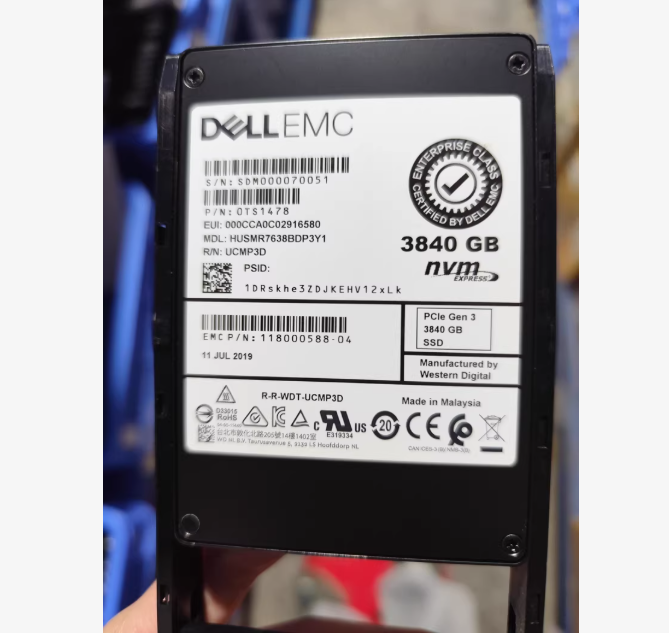

EMC Enterprise NVMe Solid State Drive - Model 118000588-04 Product Details

1、 Product Overview

        EMC 118000588-04 (part number: 005053504) is a high-performance enterprise grade NVMe solid state drive that utilizes Western Digital's advanced flash technology, with a capacity of 3.84TB. The product is based on PCIe 4.0 interface and NVMe protocol, designed specifically for high demand workloads in modern data centers, achieving outstanding performance in terms of performance, reliability, and energy efficiency.

2、 Detailed technical specifications

        Detailed specifications of parameter categories

        Basic Information

        EMC part number 118000588-04

        Alternative part number 005053504

        Flash Memory Technology Western Digital 3D TLC NAND

       Interface protocol NVMe 1.4 over PCIe 4.0

       Appearance specification 2.5 inches U.2

        Capacity information

        Nominal capacity 3.84TB

        User available capacity ≈ 3.5TB

         performance parameters

         Sequential read speed 6800 MB/s

         Sequential write speed 4000 MB/s

          4K random read 1100000 IOPS

         4K random write 280000 IOPS

          Read/write delay: Read<75 μ s, write<12 μ s

          Reliability parameters

          Durability level 5 DWPD

         Service life 35 PBW

         Mean time between failures 2500000 hours

        Annual failure rate 0.44%

         Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. Western Digital Flash Memory Innovation

       Adopting BiCS5 3D TLC NAND technology

       112 layer stacked architecture

        Innovative charge capture storage technology

        High density storage unit design

2. Enterprise level reliability

       Complete power-off protection: onboard supercapacitor

       End to end data protection: full path data integrity verification

       Advanced Error Correction Technology: LDPC Error Correction

       Intelligent Wear Balance: Dynamic Wear Balance Algorithm

3. Intelligent management function

       Hot swappable support: Compliant with NVMe hot swappable standards

       Health status monitoring: real-time monitoring and early warning

        Temperature management: Multi zone temperature monitoring

        Remote management: NVMe MI management interface

4、 Compatibility information

         Supported Dell EMC Systems:

        PowerMax 2500/8500 series

        Unity XT 380F/480F/680F/880F

        PowerEdge MX series servers

       VxRail P Series/V Series

       Operating system support:

        VMware HANA 7.0 and above

        Windows Server 2019/2022

        Red Hat Enterprise Linux 8/9

        SUSE Linux Enterprise Server 15

5、 Recommended application scenarios

1. Key business of the enterprise

         Large scale database systems (Oracle, SQL Server)

        SAP HANA In Memory Computing Platform

         Enterprise Resource Planning System

2. Virtualization environment

         Large scale virtualization deployment

         Virtual Desktop Infrastructure (VDI)

         Containerized platform storage

3. Data analysis and AI

         Real time data processing

         Business Intelligence Analysis

         Machine learning workloads

4. Cloud service infrastructure

         Private cloud storage platform

        Hybrid cloud storage solution

       Cloud native application storage
