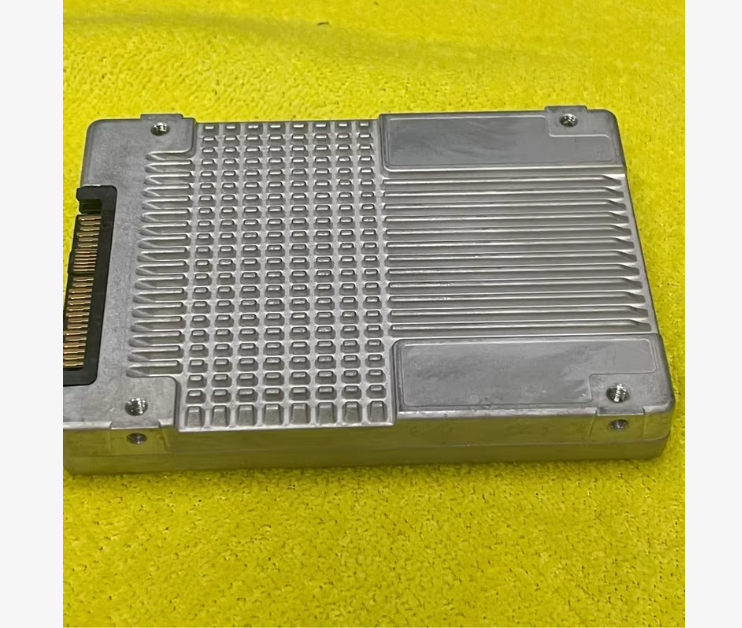

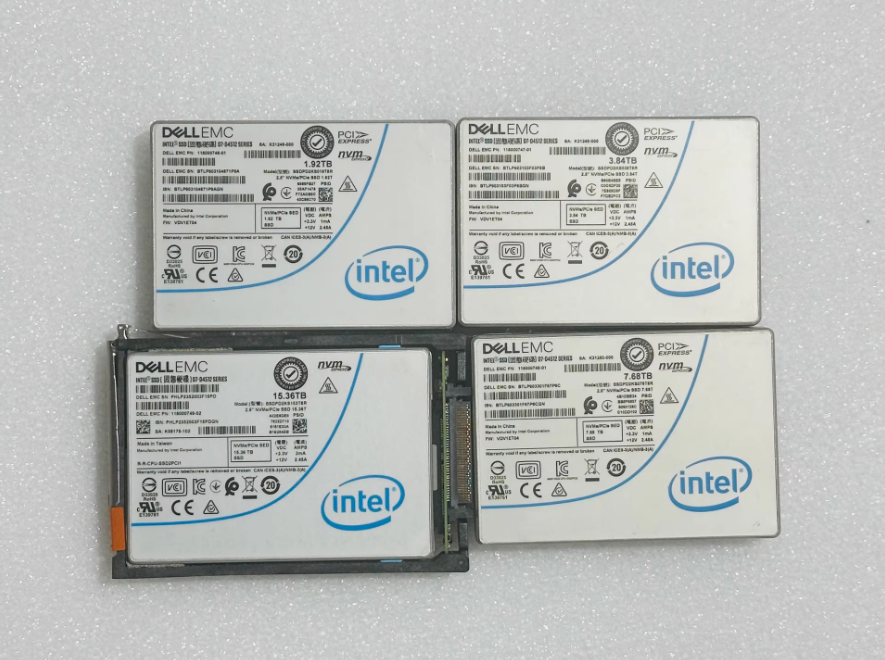

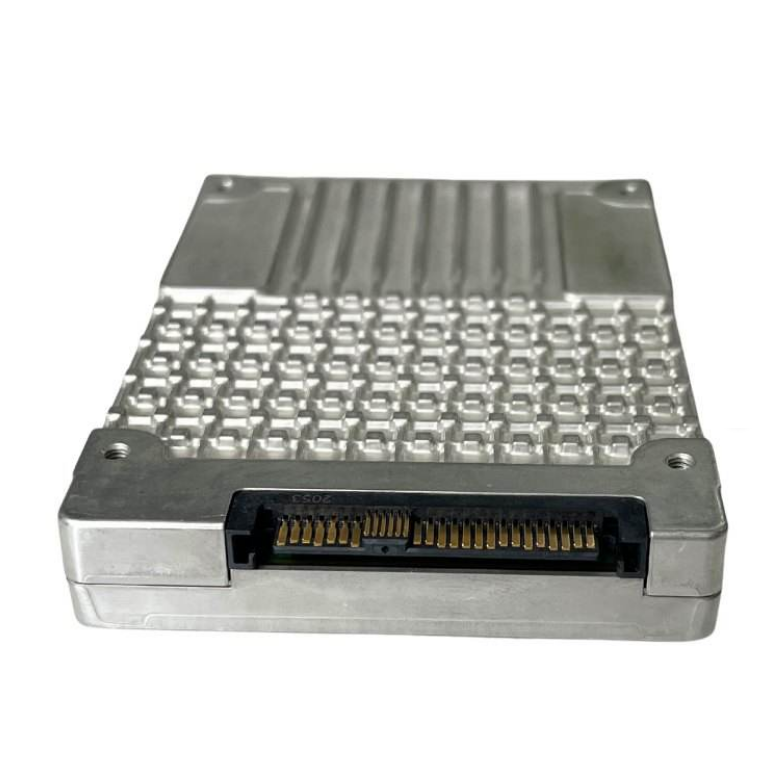

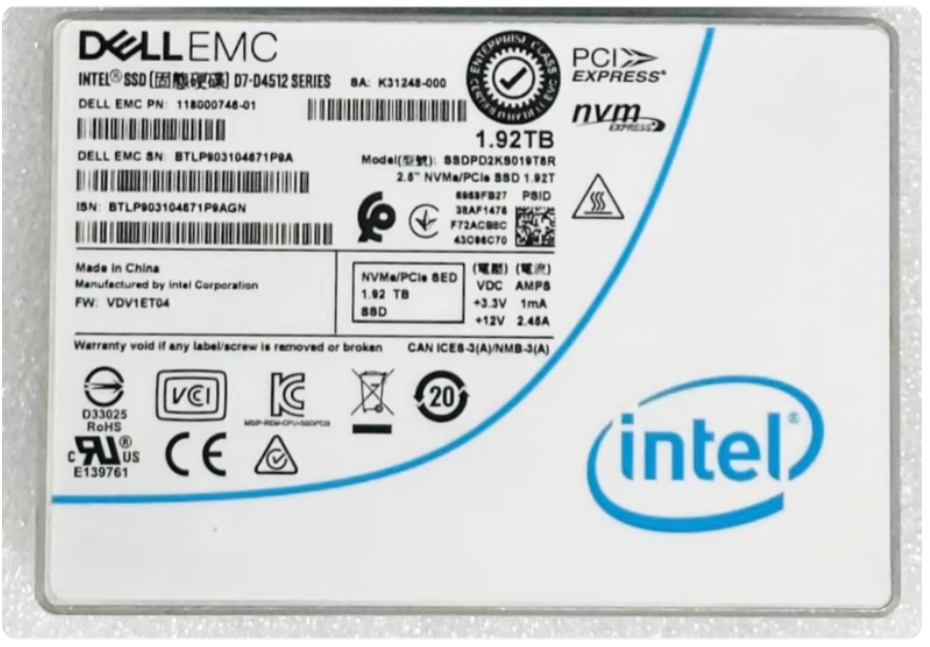

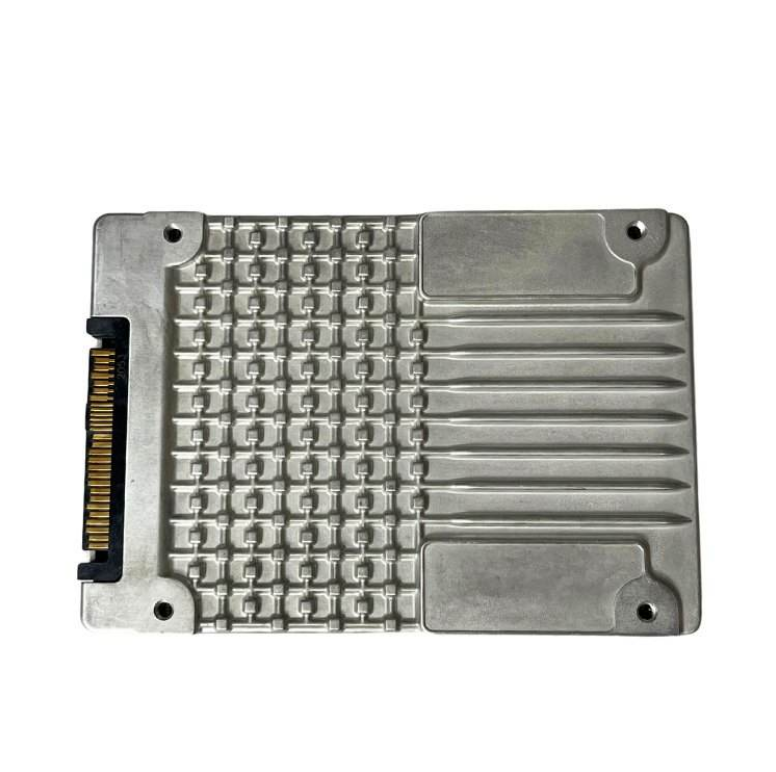

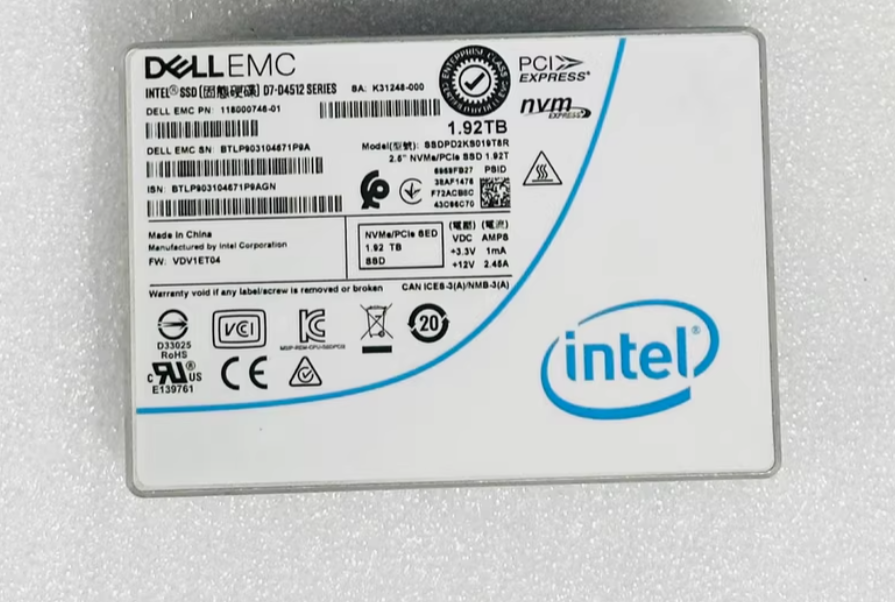

Intel 1.92T NVMe U.2 Solid State Drive 1.92TB Enterprise SSD 118000746-01 Server Hard Drive

1. Product Overview

      The EMC 118000747-01 is a high-performance enterprise-grade NVMe solid-state drive utilizing Intel 3D NAND flash technology, with a capacity of 3.84TB. Designed for demanding workloads in modern data centers, this product is based on the PCIe 4.0 interface and NVMe protocol, achieving an exceptional balance of performance, capacity, reliability, and energy efficiency.

II. Detailed Technical Specifications

        Parameter Category Detail Specifications

        Basic Information

        EMC Part Number 118000747-01

        Flash Technology

        Intel 3D TLC NAND

        Interface Protocol: NVMe 1.4 over PCIe 4.0

        Form Factor: 2.5-inch U.2 (15mm thickness)

        Capacity Information

        Nominal Capacity: 3.84TB

        Available user capacity  3.5TB (including system reserved space)

         Performance parameters

        Sequential read speed: 7,000 MB/s

         Sequential Write Speed 4,200 MB/s

        4K Random Read: 1,400,000 IOPS

        4K Random Write 300,000 IOPS

        Read/Write Latency: Read <70μs, Write <10μs

        Reliability parameters

        Durability Level 3 DWPD

        Service Life: 21 PBW (Total Data Written)

        Mean Time Between Failures (MTBF) 2,500,000 hours

         Unrecoverable error rate <1e-17

         Warranty Policy: 5Year Limited Warranty

III. Core Technologies and Features

1. Intel 3D NAND Technology

          Equipped with 144-layer 3D TLC NAND flash memory

          Innovative Floating Gate Memory Cell

          High-density storage architecture

          Optimized charge retention characteristics

2. Enterprise-level reliability

         Full Path Power Failure Protection: Onboard Super Capacitor Array

         End-to-end data protection: Full data path validation

         Advanced Error Correction Technology: Third-Generation LDPC Error Correction

         Smart Wear Leveling: Dynamic Wear Leveling Algorithm

3. Smart Management Function

          Hot-swap support: Compliant with NVMe hot-swap standards

          Health Status Monitoring: Telemetry 2.0 Remote Sensing Technology

          Temperature Management: Multi-zone Temperature Monitoring and Regulation

          Remote Management: NVMe-MI 1.1 Management Interface

IV. Compatibility Information

         Supported Dell EMC Systems:

          PowerMax 2500/8500 All-Flash Array

          PowerEdge MX Series Modular Servers

          Unity XT 380/480/680/880 Hybrid Storage

          VxRail P Series/V Series Hyper-Converged Systems

          Operating System Support:

         VMware vSphere 7.0 U3 and above

         Windows Server 2022

          Red Hat Enterprise Linux 8.4 or higher

          SUSE Linux Enterprise Server 15 SP3

V. Recommended Application Scenarios

1. Key Business of the Enterprise

         Large Database Systems (Oracle Exadata)

         SAP HANA In-Memory Computing Platform

          Enterprise Resource Planning System

2. Virtualization and Cloud Computing

          Enterprise-grade virtualization platform

          Converged infrastructure

          Hybrid cloud storage solution

3. Data Analysis and AI

         Real-time Data Analytics Platform

         Artificial Intelligence/Machine Learning Training

         Big Data Processing Cluster

4. High-performance computing

         Scientific Research Computation

         Financial Risk Modeling

         Media Content Production
