Enterprise grade SSD Intel 3.84T U.2 NVMe PCIe Mass Storage Server Accessories 3.84TB Unplugged

Product Overview

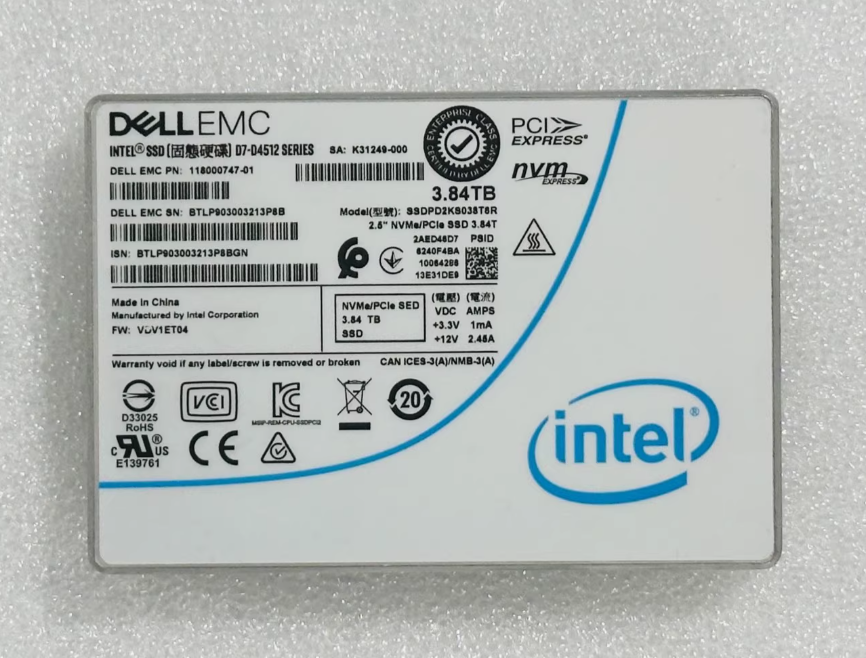

         The EMC 118000747-01 is a high-performance enterprise-grade NVMe solid-state drive utilizing Intel 3D NAND flash technology, with a capacity of 3.84TB. Designed for demanding workloads in modern data centers, this product is based on the PCIe 4.0 interface and NVMe protocol, achieving an exceptional balance of performance, capacity, reliability, and energy efficiency.

II. Detailed Technical Specifications

       Parameter Category Detail Specifications

       Basic Information

      EMC Part Number 118000747-01

       Flash Technology

       Intel 3D TLC NAND

       Interface Protocol: NVMe 1.4 over PCIe 4.0

      Form Factor: 2.5-inch U.2 (15mm thickness)

      Capacity Information

      Nominal Capacity: 3.84TB

       Available user capacity  3.5TB (including system reserved space)

      Performance parameters

      Sequential read speed: 7,000 MB/s

      Sequential Write Speed 4,200 MB/s

      4K Random Read: 1,400,000 IOPS

      4K Random Write 300,000 IOPS

      Read/Write Latency: Read <70μs, Write <10μs

      Reliability parameters

      Durability Level 3 DWPD

      Service Life: 21 PBW (Total Data Written)

      Mean Time Between Failures (MTBF) 2,500,000 hours

      Unrecoverable error rate <1e-17

      Warranty Policy: 5Year Limited Warranty

III. Core Technologies and Features

1. Intel 3D NAND Technology

       Equipped with 144-layer 3D TLC NAND flash memory

       Innovative Floating Gate Memory Cell

       High-density storage architecture

       Optimized charge retention characteristics

2. Enterprise-level reliability

       Full Path Power Failure Protection: Onboard Super Capacitor Array

       End-to-end data protection: Full data path validation

       Advanced Error Correction Technology: Third-Generation LDPC Error Correction

       Smart Wear Leveling: Dynamic Wear Leveling Algorithm

3. Smart Management Function

       Hot-swap support: Compliant with NVMe hot-swap standards

       Health Status Monitoring: Telemetry 2.0 Remote Sensing Technology

       Temperature Management: Multi-zone Temperature Monitoring and Regulation

       Remote Management: NVMe-MI 1.1 Management Interface

IV. Compatibility Information

        Supported Dell EMC Systems:

        PowerMax 2500/8500 All-Flash Array

       PowerEdge MX Series Modular Servers

       Unity XT 380/480/680/880 Hybrid Storage

        VxRail P Series/V Series Hyper-Converged Systems

        Operating System Support:

        VMware vSphere 7.0 U3 and above

        Windows Server 2022

        Red Hat Enterprise Linux 8.4 or higher

        SUSE Linux Enterprise Server 15 SP3

V. Recommended Application Scenarios

1. Key Business of the Enterprise

        Large Database Systems (Oracle Exadata)

        SAP HANA In-Memory Computing Platform

         Enterprise Resource Planning System

2. Virtualization and Cloud Computing

         Enterprise-grade virtualization platform

         Converged infrastructure

         Hybrid cloud storage solution

3. Data Analysis and AI

        Real-time Data Analytics Platform

        Artificial Intelligence/Machine Learning Training

        Big Data Processing Cluster

4. High-performance computing

       Scientific Research Computation

       Financial Risk Modeling

      Media Content Production
